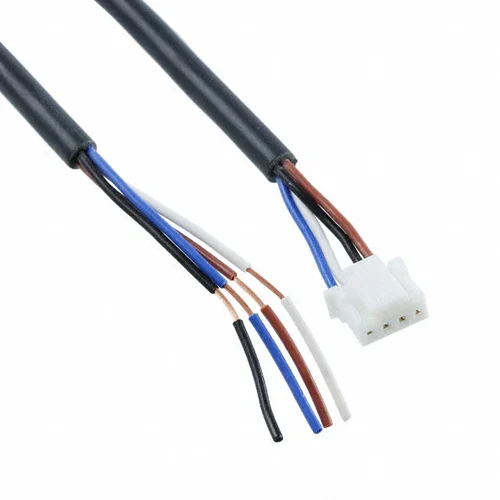

Omron EE-1017 3M is a 3 m four-pole cable connector for compatible EE-SX97 slot-type photomicrosensors.
The Omron EE-1017 3M is a 3 m connector cable accessory for compatible EE-SX97 slot-type photomicrosensors. Omron specifies a four-pole connector, maximum contact resistance of 25 mΩ, maximum insertion force of 20 N and minimum housing retention force of 1.5 N. Its connector housing is nylon and contacts are phosphor bronze. Omron's exact-model listing showed the item as selling and a standard-stock model on 2026-09-16; live stock can change.
A 3 m four-pole connector cable for compatible Omron EE-SX97 photomicrosensors.
| Parameter | Value |
|---|---|
| Product type | Photomicrosensor connector cable |
| Cable length | 3 m |
| Connector poles | 4 |
| Contact resistance | 25 mΩ max. (at 10 mA DC and 20 mV max.) |
| Insertion force | 20 N max. |
| Housing retention force | 1.5 N min. |
| Ambient temperature | -10 to +60°C |
| Compatible sensors | Omron EE-SX97 slot-type photomicrosensors |
| Housing material | Nylon |
| Contact material | Phosphor bronze |
| Physical Weight (kg) | Not stated for this cable assembly in the manufacturer data checked. |
| Dimensions L x W x H (cm) | Overall cable assembly dimensions are not stated; cable length is 3 m. |
| Supply status | Active; Omron listed EE-1017 3M as selling and a standard-stock model on 2026-09-16. Live inventory may change. |
Engineering suggestions require suitability checks for your installation.
Connect a compatible EE-SX97 slot-type photomicrosensor using its four-pole connector interface.
Select the cable length and route the lead to suit the sensor installation.
The lead connects the sensor to its control wiring while the EE-SX97 sensor monitors a moving target through its slot.
Use the four-pole accessory connection with a compatible EE-SX97 sensor and secure the cable routing to reduce strain on the connector.
