USD 18.60

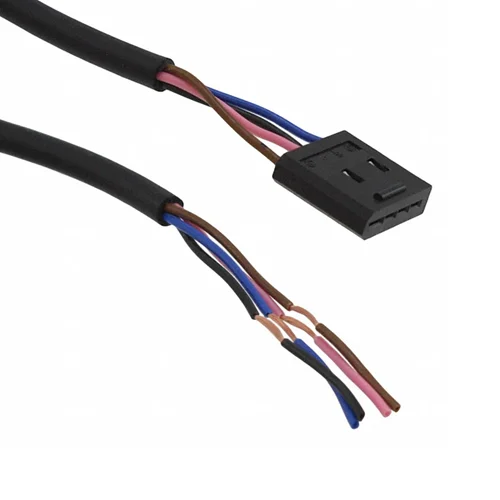

Omron EE-1010-R 2M is a locking photomicro sensor connector with a 2 m four-conductor robot cable.
The Omron EE-1010-R 2M is a locking connector cable for listed Omron photomicro sensors, using a 2 m robot instrumentation cable. The four-conductor cable is 4 mm in diameter with 0.2 mm² conductors and 1.1 mm insulation diameter; the terminal arrangement is brown (+), pink (L), black (OUT) and blue (−). Omron recommends the robot-cable version for connections to moving parts and reports over three times the bending tolerance of its standard EE-1010 cable in a comparative bending test. Omron's exact-model page lists EE-1010-R 2M as selling and standard-stock in its status record updated 2026-05-21; current live inventory was not confirmed.
A 2 m locking connector cable with a four-conductor robot cable.
| Parameter | Value |
|---|---|
| Product type | Photomicro sensor connector with robot cable |
| Cable length | 2 m |
| Locking mechanism | Built-in |
| Cable construction | 4 mm diameter, 4-conductor robot instrumentation cable |
| Conductor cross-section | 0.2 mm² |
| Insulation diameter | 1.1 mm |
| Terminal arrangement | Brown +; pink L; black OUT; blue − |
| Contact resistance | 10 mΩ max. (at 100 VDC max.) |
| Insertion strength | 50 N max. |
| Lock insertion/removal durability | 50 cycles min. |
| Applicable photomicro sensors | EE-SX67[] (A, P, R; connector models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N |
| Housing material | Polybutylene phthalate (PBT) |
| Contact material | Phosphor bronze |
| Physical Weight (kg) | Not stated in the manufacturer data checked |
| Dimensions L x W x H (cm) | See Omron's dimensional drawing; no consolidated L × W × H value for the cable assembly is stated. |
| Supply status | Active; Omron lists this exact model as selling and standard-stock in a 2026-05-21 status record. Current live inventory was not confirmed. |
Engineering suggestions require suitability checks for your installation.
A cable routed with a moving carriage or mechanism may experience repeated flexing during operation.
Use EE-1010-R where Omron's compatible photomicro sensor is attached to a moving part, and observe the specified cable bend radius and installation guidance.
Maintenance access or cable movement can place pull loads on a sensor connector.
Use the built-in lock and remove the connector by gripping its housing; do not rely on pulling the cable alone to release it.
