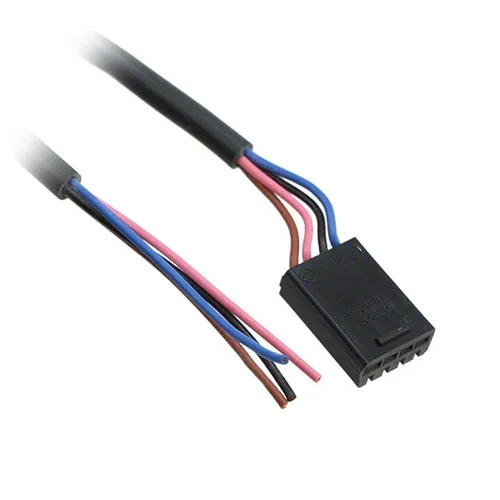

Omron EE-1006 3M is a four-conductor, 3 m cable connector for specified Omron photomicro sensors.
The Omron EE-1006 3M is a 3 m connector cable for listed Omron photomicro sensors. It uses the EE-1006 four-conductor vinyl-insulated cable construction, with a 4 mm cable diameter, 0.2 mm² conductors and 1.1 mm insulation diameter. The terminal arrangement is brown (+), pink (L), black (OUT) and blue (−). Omron specifies a PBT housing and phosphor bronze contacts and notes that EE-1006 has no locking mechanism. The exact-model page lists this 3 m version as selling and standard-stock, updated 2026-09-04.
A 3 m, four-conductor cable connector for compatible Omron photomicro sensors.
| Parameter | Value |
|---|---|
| Product type | Photomicro sensor connector with cable |
| Cable length | 3 m |
| Cable construction | 4 mm diameter, 4-conductor vinyl-insulated round cable |
| Conductor cross-section | 0.2 mm² |
| Insulation diameter | 1.1 mm |
| Terminal arrangement | Brown +; pink L; black OUT; blue − |
| Applicable photomicro sensors | EE-SX67[] (A, P, R; connector models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N |
| Locking mechanism | None |
| Housing material | Polybutylene phthalate (PBT) |
| Contact material | Phosphor bronze |
| Physical Weight (kg) | Not stated in the manufacturer data checked |
| Dimensions L x W x H (cm) | See Omron's dimensional drawing; no consolidated L × W × H value for the cable assembly is stated. |
| Supply status | Active; Omron lists this exact item as selling and standard-stock, updated 2026-09-04, with stock status marked △. |
Engineering suggestions require suitability checks for your installation.
A sensor installation may need additional reach between the sensor and the associated wiring point.
Route the 3 m EE-1006 lead to the receiving circuit and preserve Omron's brown, pink, black and blue terminal assignments.
Maintenance may require a longer connector cable for an existing Omron photomicro sensor.
Verify the sensor model against Omron's compatibility list and confirm the 3 m cable length suits the installed routing path.
