USD 30.14
200mm distance-settable sensor with BGS, 1ms response, NPN output, and IP67 rating. Stable detection for PCB assembly verification and bottling cap seating regardless of color.

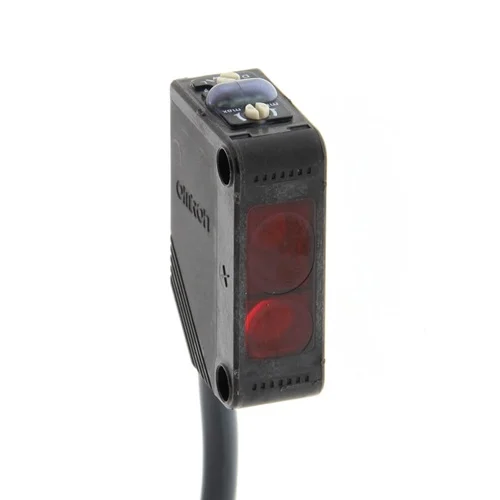

The Omron E3Z-LS61 2M is a compact, distance-settable photoelectric sensor featuring built-in background suppression (BGS). Engineered with a robust Polybutylene terephthalate (PBT) housing rated at IP67, it resists industrial dust and water ingress. It operates on a 12-24 VDC power supply and delivers an NPN open collector output with an ultra-fast 1 ms max response time. The sensor offers an adjustable sensing range from 20 to 200 mm utilizing a visible red LED (670 nm) light source, providing reliable detection irrespective of target color or background reflectivity. The unit includes a 2-meter pre-wired cable and switchable Light-ON/Dark-ON operation.
| Parameter | Value |
|---|---|
| SensingMethod | BackgroundSuppression/Distance-Setting[1.4] |
| Sensing Distance | 20 to 200 mm |
| Light Source | Red LED (670 nm) |
| Supply Voltage | 12 to 24 VDC ±10% |
| Output Type | NPN Open Collector |
| Current Consumption | 30 mA max. |
| Response Time | 1 ms max. |
| Operation Mode | Light-ON / Dark-ON Selectable |
| Connection Method | Pre-wired, 2m Cable |
| Degree of Protection | IP67 |
| Housing Material | Polybutylene terephthalate (PBT) |
Implementedinfast-pacedpackaginglinestodetectcartonsorpouchesastheypass, triggeringsortingmechanismsoraccuratecounting[1.4].
Eliminates false triggers caused by shiny or reflective conveyor belts and varying package colors, ensuring reliable counts using background suppression.
Mounted inside automated assembly cells to detect the precise presence and alignment of printed circuit boards (PCBs) before robotic interaction.
Prevents equipment damage by reliably detecting boards regardless of varying PCB colors or reflective metallic machine backgrounds within tight spatial constraints.
Used on a bottling line to verify that caps are properly seated on bottles before they proceed to labeling and boxing.
Operates reliably in washdown environments where liquid splashes occur, while accurately detecting caps of multiple colors against complex machine backgrounds.
