Omron E3X-HD6 E3X-HD fiber amplifier with NPN open collector, wire-saving connector and 12 to 24 VDC ±10% supply.
The E3X-HD6 is an Omron E3X-HD fiber amplifier unit with a wire-saving connector and a NPN open collector control output. Its red LED light source and adjustable threshold work with a compatible Omron fiber unit to detect a target. Verify the wiring and select the optical fiber head for the intended sensing geometry.

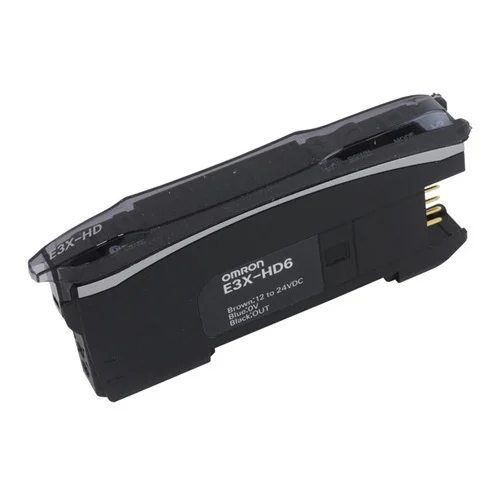

Omron E3X-HD fiber amplifier with NPN open collector output and wire-saving connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3X-HD |
| Product type | Fiber amplifier unit |
| Output | NPN open collector |
| Connection | Wire-saving connector |
| Rated supply voltage | 12 to 24 VDC ±10% |
| Light source | Red 4-element LED, 625 nm |
| Response time | 50 μs SHS; 250 μs HS; 1 ms standard; 16 ms GIGA |
| Protective rating | IP50 with protective cover |
| Connector accessories | Required connectors sold separately; use compatible Omron master/slave connectors as specified for the family. |
| Supply status | Unknown; current manufacturer supply status was not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect small parts or targets using a compatible Omron fiber unit.
Choose an optical fiber head to match the target size, sensing direction and working distance.
Convert optical fiber signal levels to a discrete machine input.
Connect the NPN open collector to compatible controller input wiring and set the appropriate Light-ON or Dark-ON mode.
