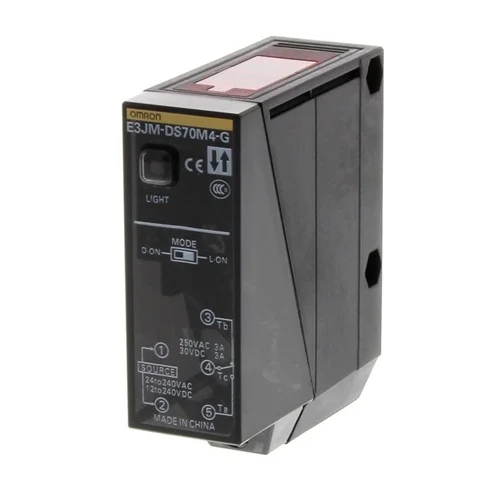

Omron E3JM-DS70M4-G: 700 mm diffuse-reflective relay photoelectric sensor with built-in supply and terminal block. Supply status not established.
The Omron E3JM-DS70M4-G is a built-in-power-supply diffuse-reflective photoelectric sensor with relay output and terminal-block connection. Its nominal sensing distance is 700 mm on the specified white 200 × 200 mm target; the -G model uses a PG13.5 conduit entry. The model has no timer function.
700 mm diffuse-reflective relay photoelectric sensor with built-in supply and terminal block.
| Parameter | Value |
|---|---|
| Sensing method | Diffuse-reflective; infrared light |
| Sensing distance | 700 mm (white 200 × 200 mm paper) |
| Output | Relay, SPDT; 250 VAC 3 A max., 5 VDC 10 mA min. |
| Supply voltage | 24–240 VDC ±10% or 100–240 VAC ±10% |
| Operation mode | Light-ON / Dark-ON selectable |
| Timer | No timer |
| Connection | Terminal block; PG13.5 conduit socket (-G) |
| Response time | 30 ms max. |
| Protection | IP66 |
| Operating temperature | −25 to 55 °C |
| Physical Weight (kg) | Approx. 0.160 kg (packed state) |
| Dimensions L x W x H (cm) | Refer to Omron model-specific outline drawing |
Engineering suggestions require suitability checks for your installation.
Use the verified Omron product in a conveyor package presence station.
Confirm the target, mounting, wiring, environmental conditions and controller interface against the machine design before commissioning.
Apply the Omron product to a machine-part detection task.
Validate operating margin on representative parts and follow the Omron installation and wiring documentation.
