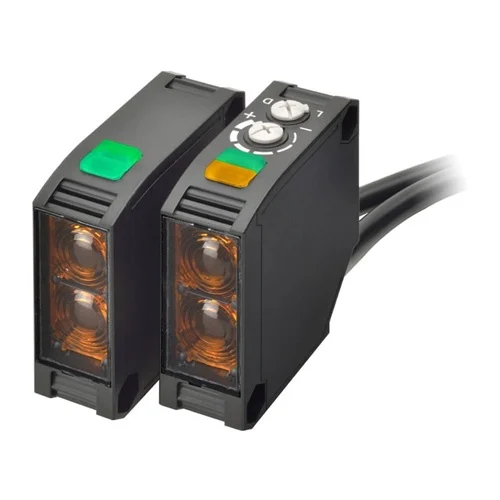

Omron E3JK-TR12-C 2M through-beam sensor: 5 m; Relay SPDT at receiver; IP64, 2 m cable.
The Omron E3JK-TR12-C is a pre-wired E3JK through-beam emitter and receiver set photoelectric sensor, rated for 5 m. This configuration uses red led, 624 nm, 24–240 vdc ±10% or 24–240 vac ±10%, 50/60 hz and relay spdt at receiver output; the stated response time is 20 ms max. and enclosure rating is IP64. The -C version includes a mounting bracket, and retro-reflective -C versions include an E39-R1 reflector. Current supply status is not established by the consulted manufacturer material and is recorded as Unknown.
A pre-wired through-beam sensor with 5 m sensing distance.
| Parameter | Value |
|---|---|
| Sensing method | Through-beam emitter and receiver set |
| Sensing distance | 5 m |
| Standard sensing object | 17 mm minimum opaque target |
| Light source | Red LED, 624 nm |
| Power supply | 24–240 VDC ±10% or 24–240 VAC ±10%, 50/60 Hz |
| Power consumption | 3 W max. per set (emitter 1.5 W max.; receiver 1.5 W max.) |
| Output | Relay SPDT at receiver, 250 VAC 3 A max. (cosφ=1); 5 VDC 10 mA min.; Light-ON/Dark-ON selectable |
| Response time | 20 ms max. |
| Sensitivity adjustment | One-turn adjuster at receiver |
| Ambient temperature | Operating −25 to +55 °C; storage −40 to +70 °C; no icing/condensation |
| Ambient humidity | Operating 35–85% RH; storage 35–95% RH; no condensation |
| Enclosure rating | IP64 |
| Housing material | ABS; methacrylic resin lens/display; POM adjuster; PVC cable |
| Connection | Pre-wired, 2 m |
| Included accessories | Emitter/receiver set; mounting brackets included with -C model |
| Physical Weight (kg) | Approx. 0.350 kg packed set |
| Dimensions L x W x H (cm) | Not transcribed numerically from the manufacturer dimension drawing |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A conveyor line may need to identify products across a defined sensing gap or against a fixed surface.
Evaluate the through-beam emitter and receiver set geometry and 5 m range with the actual target; confirm output wiring and response in the control circuit.
A station may need a discrete presence signal for a part or carrier before the next operation.
Use the relay spdt at receiver output with a compatible input and verify the target, reflector or emitter/receiver alignment as applicable.
