USD 26.00
300mm M18 diffuse sensor with NPN output. Features a visible red LED, 0.5ms response, and IP69K rating. Ideal for automated sorting and high-temperature industrial washdown lines.

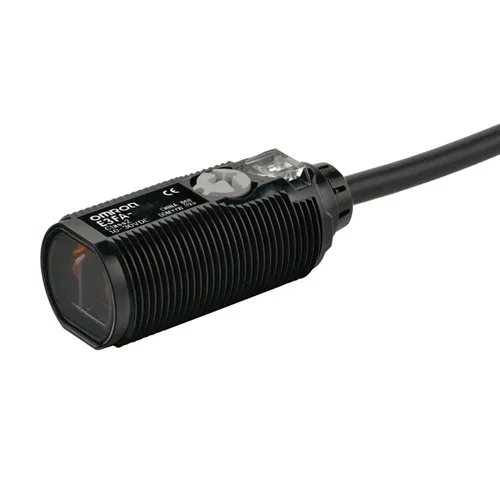

The Omron E3FA-DN12 2M is a compact, diffuse-reflective photoelectric sensor designed for robust industrial applications. It features an M18 threaded cylindrical barrel with an ABS plastic housing and PMMA lens. Equipped with a high-power, visible red LED (624 nm), this sensor ensures easy alignment and provides a sensing distance of up to 300 mm. It delivers a fast response time of 0.5 ms and comes with an NPN digital output capable of both Light-ON and Dark-ON operation. With an IP67 and IP69K protection rating, the sensor is highly resilient against harsh environments and high-pressure, high-temperature washdowns.
| Parameter | Value |
|---|---|
| Sensing Method | Diffuse reflective |
| Sensing Distance | 300 mm |
| Light Source | Red LED (624 nm) |
| Output Type | NPN (Light-ON / Dark-ON) |
| Power Supply Voltage | 10 to 30 VDC |
| Current Consumption | 25 mA max. |
| Response Time | 0.5 ms |
| Connection Method | Pre-wired cable (2 meters) |
| Housing Material | ABS Plastic |
| Thread Size | M18 |
| Degree of Protection | IP67 / IP69K |
| Operating Temperature | -25 to +55 °C |
Detects the presence and position of cardboard boxes or packages passing along a high-speed conveyor belt.
Requires rapid response and visual alignment without the complexity of mounting opposing receivers or reflectors. The 0.5 ms response time ensures even fast-moving objects are accurately detected, while the diffuse reflective 300 mm range simplifies installation.
Monitors product flow or machine states in food, beverage, or pharmaceutical processing lines requiring intense cleaning.
Standard optical sensors fail when subjected to high-pressure hot water jets during daily washdowns. The IP69K rating ensures the sensor withstands 80°C water at 80-100 bar, preventing water ingress and maintaining reliable operation.
Identifies the arrival of plastic totes, bins, or components at routing junctions in an automated warehouse or assembly line.
Needs robust sensors that can be installed quickly and adjusted easily on machine frames. The M18 threaded barrel allows for secure, flush mounting, while the high-power red LED assists technicians in rapid optical alignment.
