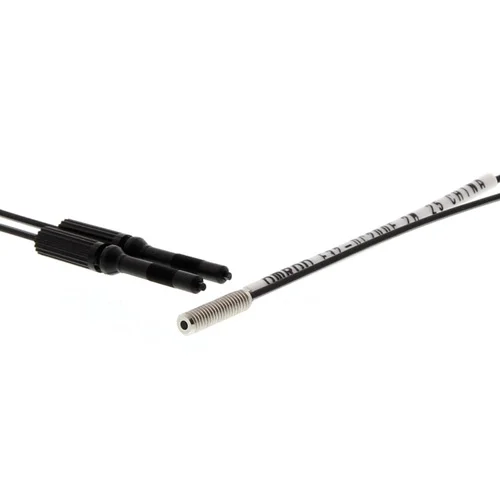

Omron E32-ZT200E 2M is an M3 straight through-beam fiber head with 2 m cable, IP67 protection, and a 680 mm standard-mode reference range.
The Omron E32-ZT200E 2M is a straight through-beam fiber optic sensor head with an M3 threaded mount and a 2 m cable. Omron’s E3X-HD catalog lists reference sensing distances of 680 mm in standard mode and 250 mm in high-speed mode with a compatible amplifier, and specifies IP67 protection for the model. Omron’s E32 family information gives a 25 mm minimum bend radius and -40 to +70°C operating range. The catalog confirms exact technical specifications, but current sales status for the exact model was not established.
An M3 through-beam fiber head with a 2 m cable for compact machine installations.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Through-beam |
| Head style | Straight axial; M3 threaded |
| Sensing distance | With E3X-HD amplifier: 680 mm standard mode; 250 mm high-speed mode; verify actual setup |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3S-X3CE4 family specifications; select compatible E32 amplifier based on application |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
A separated emitter and receiver path detects objects that interrupt the optical beam.
Align emitter and receiver fiber heads across the sensing gap, then verify minimum target size and range with the selected amplifier.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
