USD 20.10

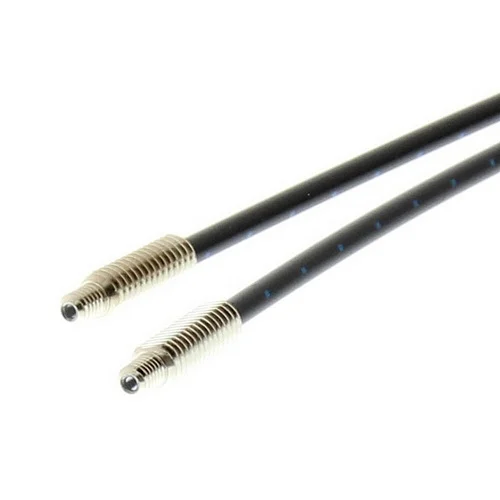

Omron E32-ZT200 2M is an M4 straight through-beam fiber head with a 2 m cable, IP67 protection, and R25 minimum bend radius.
The Omron E32-ZT200 2M is a straight through-beam fiber optic sensor head with an M4 threaded mount and a 2 m plastic fiber cable. Omron’s E3X-HD catalog lists IP67 protection and the model-specific reference sensing range up to 2,800 mm in standard mode and 1,550 mm in high-speed mode when paired with the compatible amplifier. The E32 family uses polyethylene-sheathed fibers with an R25 minimum bend radius and -40 to +70°C operating range. The checked manufacturer catalog confirms specifications; current sales status for this exact model was not established.
An M4 through-beam fiber head with 2 m cable for long-gap object detection.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Through-beam |
| Head style | Straight axial; M4 threaded |
| Sensing distance | Up to 2,800 mm standard mode or 1,550 mm high-speed mode with compatible E3X-HD amplifier; check target and setup |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3S-X3CE4 family specifications; select compatible E32 amplifier based on application |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
A separated emitter and receiver path detects objects that interrupt the optical beam.
Align emitter and receiver fiber heads across the sensing gap, then verify minimum target size and range with the selected amplifier.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
