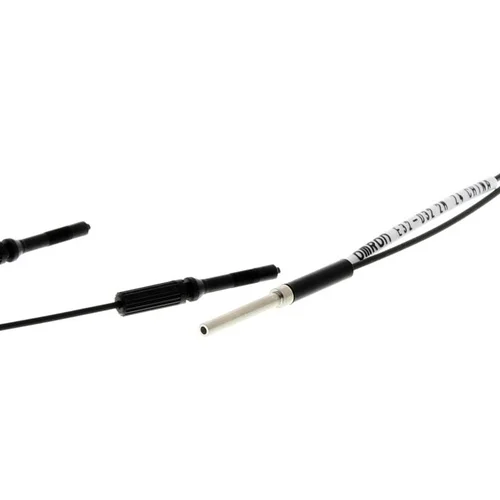

Omron E32-ZD33 2M is a miniature reflective fiber head with a 0.8 mm sleeve, 15 mm sleeved section, 2 m cable and R4 bend radius.
The Omron E32-ZD33 2M is a miniature diffuse-reflective fiber unit with a 3 mm cylindrical head and a narrow 0.8 mm sleeved sensing section. Omron's E3X-HD catalog lists 15 mm sleeve length, a 2 m cable, R4 minimum bend radius and IP67 protection, with sensing distances dependent on amplifier mode. The manufacturer table gives up to 70 mm in GIGA, 30 mm in standard and 8 mm in super-high-speed mode. The head requires a compatible amplifier; current supply status for this exact model was not established.
Miniature reflective fiber head with 0.8 mm sleeved tip and 2 m lead.
| Parameter | Value |
|---|---|
| Product type | Miniature diffuse-reflective fiber optic sensor head |
| Head form | 3 mm cylindrical head; 0.8 mm sleeve diameter |
| Sleeve length | 15 mm |
| Cable length | 2 m; free cut |
| Minimum bend radius | R4 |
| Sensing distance | With E3X-HD: GIGA up to 70 mm; standard 30 mm; super-high-speed 8 mm |
| Protection rating | IP67 |
| Compatible amplifier | Omron E3X-HD; confirm mode and target surface for actual sensing margin |
| Physical Weight (kg) | Not stated in the checked manufacturer catalog. |
| Dimensions L x W x H (cm) | Head and sleeve details are listed above; no overall L × W × H figure stated. |
| Supply status | Unknown; exact manufacturer specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
The narrow sleeved tip can reach small reflective targets in fixtures with limited access around the inspection point.
Aim the tip at the target, choose a compatible amplifier mode and validate the response against the target surface and background.
A miniature fiber end can place optical sensing close to tiny components while the amplifier remains remote.
Secure the fiber, maintain the R4 bend radius and test repeatability with production parts before finalizing the mount.
