Omron E32-ZD200E 2M is an M3 reflective fiber head with 2 m cable, IP67 protection, and a model-specific 360 mm standard-mode range.

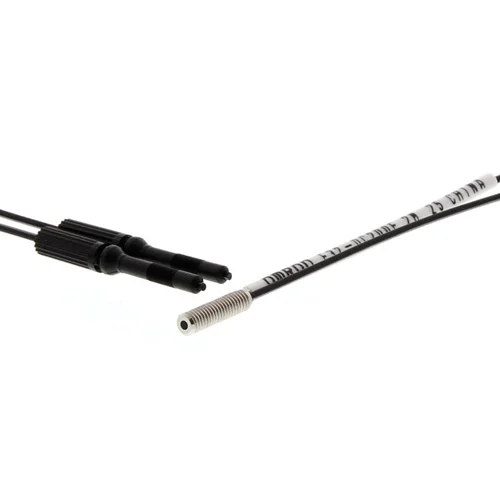

The Omron E32-ZD200E 2M is a reflective fiber optic sensor head with an M3 threaded mount, 2 m cable and a 25 mm minimum bend radius. Omron’s E3X-HD catalog lists a 360 mm reference sensing distance in standard mode and 100 mm in high-speed mode with a compatible amplifier, for a white-paper target; the exact range depends on the amplifier configuration and target. Omron lists the E32 fiber family with IP67 protection and a -40 to +70°C operating range. The manufacturer catalog confirms the technical configuration, but current sales status for this exact model was not established.
An M3 reflective fiber head with a 2 m lead for compact industrial sensing.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Reflective |
| Head style | M3 threaded reflective head |
| Sensing distance | With E3X-HD amplifier: 360 mm standard mode; 100 mm high-speed mode; white-paper reference target |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3X-HD; verify the amplifier model and mode for the required sensing range |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
Reflective fiber sensing can place a compact optical head close to a constrained fixture.
Aim the M6 head at the target and configure a compatible amplifier; verify sensing distance for the actual surface and mode.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
