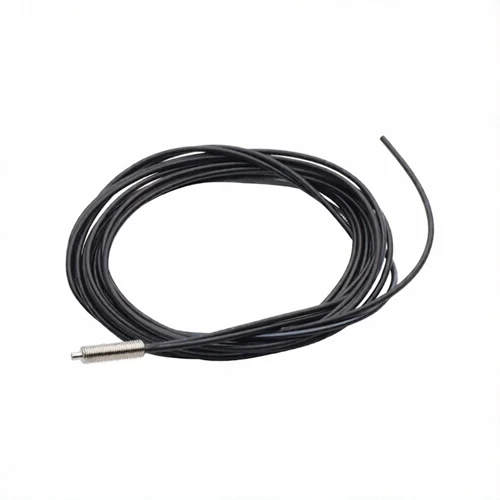

Omron E32-ZD11 2M is an M6 straight reflective fiber head with 2 m cable, IP67 protection, and amplifier-dependent sensing range.
The Omron E32-ZD11 2M is a straight reflective fiber optic sensor head with an M6 threaded mount and 2 m cable. Omron’s E3X-HD catalog lists model-specific reference sensing distances up to 840 mm in GIGA mode, 350 mm in standard mode, 240 mm in high-speed mode and 100 mm in super-high-speed mode using the compatible amplifier. The E32 family specifies IP67 protection and an operating range of -40 to +70°C. The manufacturer catalog confirms the model specifications, but current sales status for this exact model was not established.
An M6 straight reflective fiber head for amplifier-based industrial object detection.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Reflective |
| Head style | Straight axial; M6 threaded |
| Sensing distance | With E3X-HD amplifier: GIGA 840 mm; standard 350 mm; high-speed 240 mm; super-high-speed 100 mm |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3X-HD; verify the amplifier model and mode for the required sensing range |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
Reflective fiber sensing can place a compact optical head close to a constrained fixture.
Aim the M6 head at the target and configure a compatible amplifier; verify sensing distance for the actual surface and mode.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
