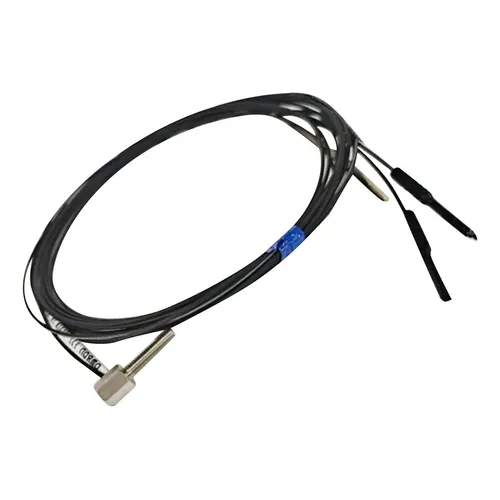

Omron E32-ZC31N 2M is an M3 right-angle reflective fiber head with 2 m cable, IP67 protection, and a 4 mm minimum bend radius.
The Omron E32-ZC31N 2M is a compact right-angle reflective fiber optic sensor head with an M3 mount and a 2 m cable. Omron’s E3X-HD catalog lists IP67 protection, a 4 mm minimum bend radius and amplifier-dependent sensing distances up to 110 mm in GIGA mode, 50 mm in standard mode, 46 mm in high-speed mode, and 14 mm in super-high-speed mode. The catalog also lists a 5 µm representative minimum detectable target with the specified amplifier configuration. The exact technical specifications are confirmed, but current sales status for this model was not established.
A compact M3 right-angle reflective fiber head with 2 m cable and R4 bend radius.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Reflective |
| Head style | Right-angle M3 threaded head |
| Sensing distance | With E3X-HD amplifier: GIGA 110 mm; standard 50 mm; high-speed 46 mm; super-high-speed 14 mm |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 4 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3X-HD; verify the amplifier model and mode for the required sensing range |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
A coaxial fiber arrangement can help reduce alignment effects when sensing small or irregular targets.
Install the M6 head coaxial to the target and tune the compatible amplifier; verify the actual target surface, range and operating mode.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
