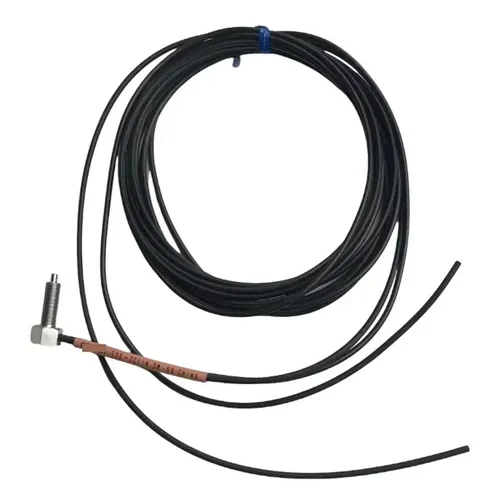

Omron E32-ZC11N 2M is an M6 right-angle coaxial reflective fiber head with 2 m cable, R4 bend radius and amplifier-dependent detection up to 840 mm.
The Omron E32-ZC11N 2M is a coaxial reflective fiber head with an M6 right-angle mounting form and 2 m free-cut fiber. Omron's E3X-HD catalog gives amplifier-mode sensing values of up to 840 mm in GIGA, 320 mm in high-speed, 350 mm in standard and 100 mm in super-high-speed mode; the E3X-ZD2 catalog also identifies its M6 right-angle form and R4 bend-resistant cable. Sensing range depends on the amplifier and target surface. The exact model specifications are manufacturer-documented, while current supply status is unknown.
M6 coaxial reflective fiber head with right-angle mounting and bend-resistant R4 cable.
| Parameter | Value |
|---|---|
| Product type | Coaxial reflective fiber optic sensor head |
| Sensing method | Reflective, coaxial |
| Head style | M6 threaded, right-angle |
| Cable length | 2 m; free cut |
| Minimum bend radius | R4 |
| Sensing distance | With E3X-HD: GIGA 840 mm max.; standard 350 mm max.; high-speed 320 mm max.; super-high-speed 100 mm max. |
| Protection rating | IP67 (Omron catalog) |
| Compatible amplifier | Omron E3X-HD / E3X-ZD family; confirm exact model and mode |
| Physical Weight (kg) | Not stated in the checked manufacturer catalog. |
| Dimensions L x W x H (cm) | See manufacturer dimensional drawing; no overall L × W × H figure stated. |
| Supply status | Unknown; exact manufacturer specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
A right-angle M6 head can place the optical sensing point close to a small fixture while the amplifier is mounted remotely.
Align the coaxial head to the workpiece, tune a compatible amplifier and verify range against the actual surface reflectivity.
The 2 m fiber separates the sensing head from the amplifier electronics in crowded equipment layouts.
Route the cable within its R4 bend limit and test the selected E3X-HD mode with the installed target.
