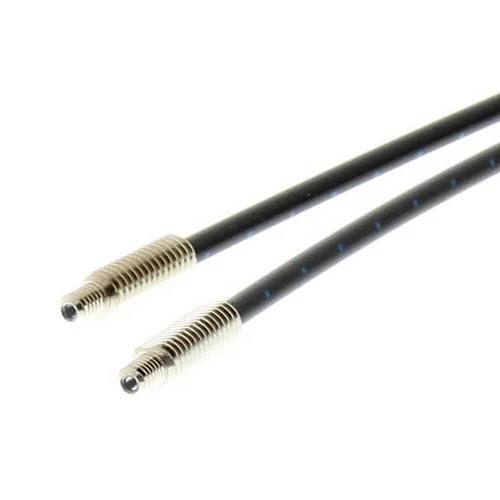

Omron E32-TC200 2M is an M4 top-view through-beam fiber head with a 2 m cable, R25 bend radius, and IP67 protection.
The Omron E32-TC200 2M is a through-beam fiber optic sensor head with an M4 threaded axial mount, top-view orientation, a 2 m cable and R25 minimum bend radius. Omron lists the model as selling and standard-stock. It is part of the E32 fiber family with IP67 protection and an operating range of -40 to +70°C. In Omron’s E3S-X3CE4 family specification, the TC200 head supports 120 mm through-beam sensing with opaque objects at least 1.4 mm in diameter; final range depends on the compatible amplifier and installation.
An M4 top-view through-beam fiber head with 2 m cable and R25 bend radius.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Through-beam |
| Head style | M4 threaded axial; top view |
| Sensing distance | 120 mm with Omron E3S-X3CE4 amplifier; opaque target at least 1.4 mm |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3S-X3CE4 family specifications; select compatible E32 amplifier based on application |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Active; Omron lists the exact model as selling and standard-stock. |
Engineering suggestions require suitability checks for your installation.
A separated emitter and receiver path detects objects that interrupt the optical beam.
Align emitter and receiver fiber heads across the sensing gap, then verify minimum target size and range with the selected amplifier.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
