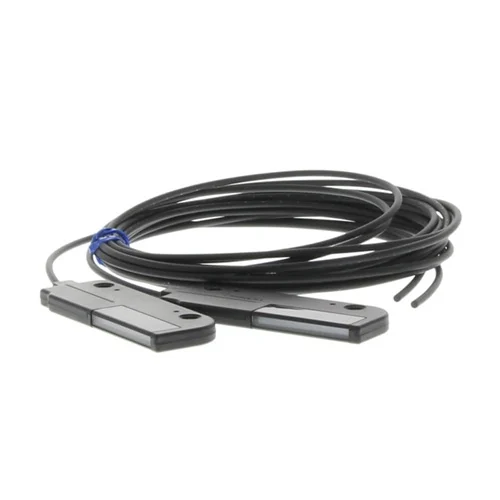

Omron E32-T16WR 2M: area through-beam fiber unit, flexible R1 cable, 2 m, IP50.
The Omron E32-T16WR 2M is an area-type through-beam fiber unit with a side-view head and 2 m flexible fiber cable. It supports a minimum bend radius of R1 and can be cut to length. The WR version uses a PMMA sensing head and is rated IP50.
Omron E32-T16WR 2M: area through-beam fiber unit, flexible R1 cable, 2 m, IP50.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Fiber unit, area through-beam |
| Detection direction | Side view |
| Fiber cable | Flexible, 2 m, free-cut |
| Minimum bend radius | R1 |
| Minimum detectable object | 0.3 mm (E3X-HD); 0.1 mm (E3NX-FA) |
| Maximum sensing distance by amplifier | E3X-HD: GIGA 4000 mm, HS 1700 mm, ST 2600 mm, SHS 680 mm; E3NX-FA: GIGA 4000 mm, HS 2550 mm, ST 3900 mm, SHS 680 mm |
| Sensing head material | PMMA |
| Degree of protection | IP50 |
| Operating temperature | −25 to 55°C |
| Physical Weight (kg) | 0.060 (approx. 60 g packaged) |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked manufacturer source. |
Engineering suggestions require suitability checks for your installation.
Detect an object passing through a fiber-optic sensing area where a compact head is needed.
Pair with a compatible E3X-HD or E3NX-FA amplifier and select its sensing mode and threshold for the target.
Route fiber into a constrained machine location while keeping the amplifier remote.
Use the side-view head and respect the bend radius and free-cut instructions during routing.
