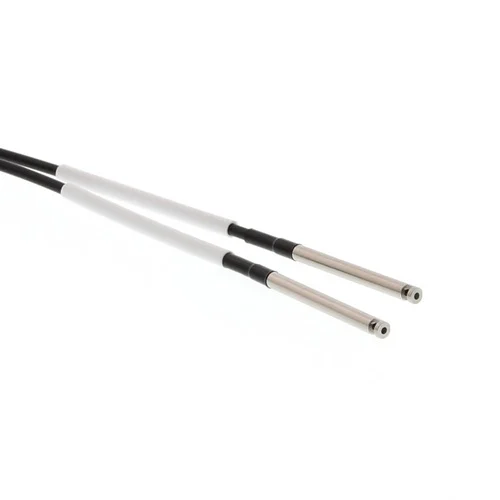

Omron E32-T14L 2M is a 3 mm side-view through-beam fiber head with 2 m cable, 1,420 mm listed range, R25 bend radius and IP67.
The Omron E32-T14L 2M is a through-beam fiber optic head in a 3 mm cylindrical radial form, with side-view sensing for installations where the optical path must turn relative to the cable axis. Omron's product family listing specifies a 2 m cable, 1,420 mm sensing distance, 25 mm bend radius, plastic core, polyethylene sheath, IP67 protection and an operating range of -40 to +70°C. The listed range depends on the fiber amplifier and setup. Manufacturer specifications are available for the exact model, while its current supply status was not established.
3 mm radial side-view through-beam fiber head with 2 m lead and R25 bend radius.
| Parameter | Value |
|---|---|
| Product type | Through-beam fiber optic sensor head |
| Sensing method | Through-beam |
| Head style | Cylindrical radial, 3 mm diameter, side-view |
| Sensing distance | 1,420 mm listed; depends on compatible amplifier |
| Cable length | 2 m; free cut |
| Fiber construction | Plastic core; polyethylene sheath |
| Minimum bend radius | 25 mm (R25) |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C |
| Compatible amplifier | Omron E32-compatible fiber amplifier; verify range for selected amplifier and mode |
| Physical Weight (kg) | Not stated in the checked manufacturer listing. |
| Dimensions L x W x H (cm) | No overall L × W × H figure stated in the checked manufacturer listing. |
| Supply status | Unknown; exact manufacturer specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
Radial sensing orientation can place the optical aperture toward a target when a straight head would collide with nearby machine structure.
Position the side-view head so the through-beam path crosses the target and verify alignment with the selected amplifier.
Remote fiber heads can detect objects across a conveyor while the amplifier is mounted in a separate control location.
Use compatible transmit and receive fibers, maintain the R25 bend radius and test detection margins with actual parts.
