Omron E32-LT11N 2M is an M4 through-beam fiber unit with built-in lens, 2 m cable, R2 fiber and up to 4,000 mm amplifier-dependent range.

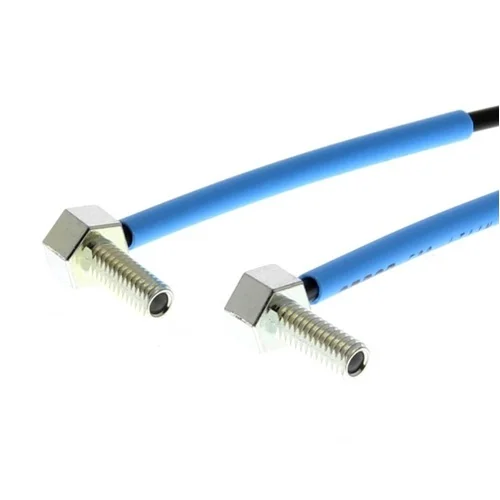

The Omron E32-LT11N 2M is a through-beam fiber unit with an M4 threaded, right-angle head and a built-in lens for longer-range optical detection. Omron's family data lists a 2 m fiber cable, flexible R2 routing and amplifier-dependent sensing distances reaching 4,000 mm in GIGA mode; its dimensions page identifies the exact model and free-cut construction. It requires a compatible Omron fiber amplifier, and the checked manufacturer data confirms specifications but does not establish the current supply status for this exact variant.
M4 right-angle through-beam fiber unit with built-in lens, 2 m cable and R2 routing.
| Parameter | Value |
|---|---|
| Product type | Through-beam fiber optic sensor unit |
| Sensing method | Through-beam |
| Head style | M4 threaded, right-angle, built-in lens |
| Cable length | 2 m, free cut |
| Fiber bend radius | R2 flexible fiber |
| Sensing distance | Up to 4,000 mm in GIGA mode; amplifier and mode dependent |
| Protection rating | IP67 (E32 family listing) |
| Compatible amplifier | Omron E3X-HD / E3NX-FA family; confirm performance for the selected amplifier |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See Omron E32-LT11N 2M dimensional drawing; no overall L × W × H figure stated. |
| Supply status | Unknown; exact manufacturer specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
Through-beam sensing can detect small opaque items across a conveyor or machine station where the amplifier needs to sit away from the sensing point.
Install the right-angle heads on opposing sides of the path, use a compatible amplifier, and confirm sensing margin with the actual object and operating mode.
The threaded right-angle head routes the fiber along a mounting surface in constrained equipment layouts.
Route the 2 m fiber within the R2 bend limit and validate clearances, target contrast and environmental conditions.
