USD 79.95

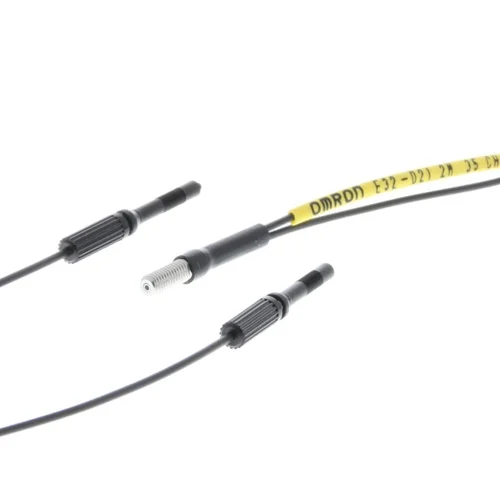

Omron E32-D21R 2M is an M3 reflective fiber head with 2 m flexible R1 cable, IP67 protection and amplifier-dependent sensing up to 210 mm.
The Omron E32-D21R 2M is a reflective fiber unit with a straight M3 threaded sensing head, approximately 60° aperture and flexible R1 fiber cable. Omron specifies 2 m cable length, free-cut construction, zero unbendable cable length, SUS304 sensing-head material, IP67 protection and -40 to +70°C operation. With E3X-HD, catalog distances are up to 140 mm in GIGA, 40 mm in high-speed, 60 mm in standard and 16 mm in super-high-speed mode; E3NX-FA values differ. Omron currently lists the exact model for sale as standard stock.
M3 reflective fiber head with 2 m flexible R1 cable and IP67 protection.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Head style | M3 threaded, straight; top view; approximately 60° aperture |
| Fiber cable | 2 m; flexible R1; free cut; no unbendable section |
| Sensing distance with E3X-HD | GIGA 140 mm max.; high-speed 40 mm; standard 60 mm; super-high-speed 16 mm |
| Sensing distance with E3NX-FA | GIGA 210 mm max.; high-speed 60 mm; standard 90 mm; super-high-speed 16 mm |
| Sensing head material | SUS304 |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C |
| Weight | Approx. 20 g packaged |
| Compatible amplifier | Omron E3X-HD or E3NX-FA; use mode-specific ranges and confirm target surface |
| Supply status | Active; current Omron page lists for sale as standard stock. |
| Physical Weight (kg) | Approximately 0.020 kg packaged. |
| Dimensions L x W x H (cm) | See Omron E32-D21R 2M dimensional drawing; no overall L × W × H figure stated. |
Engineering suggestions require suitability checks for your installation.
A compact reflective head can detect small parts where an integrated sensor body would not fit near the target.
Mount the M3 head toward a stable target region and tune a compatible amplifier to the actual surface and required response mode.
The flexible fiber lead can be routed through tight machine paths where larger bend-resistant cable cannot be accommodated.
Keep bends within the R1 specification, secure the lead against abrasion and verify the target's detection margin.
