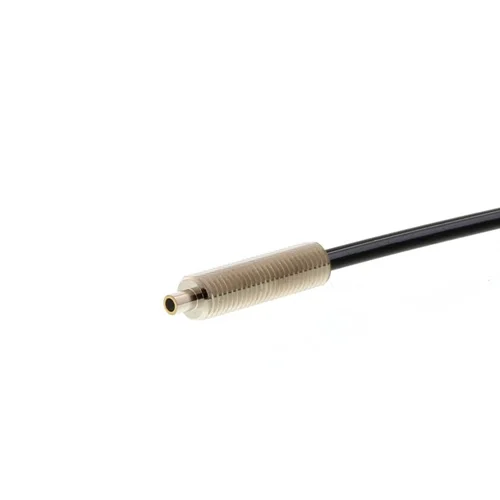

Omron E32-CC200 2M is an M6 coaxial reflective fiber head with 60° aperture, 2 m cable, and IP67 protection.
The Omron E32-CC200 2M is a coaxial reflective fiber unit with an M6 threaded head, top-view sensing face and approximately 60° aperture. It has a 2 m free-cuttable cable, R25 minimum bend radius, IP67 protection and a brass, nickel-plated sensing head. With an E3X-HD amplifier, Omron specifies up to 1,400 mm in GIGA mode, 600 mm standard, 400 mm high-speed, and 180 mm super-high-speed, with a 5 µm representative minimum object; E3NX-FA figures differ. Omron lists the exact model as selling and standard-stock; the packaged weight is approximately 40 g.
An M6 coaxial reflective fiber unit with a wide aperture and 2 m cable.
| Parameter | Value |
|---|---|
| Product type | Coaxial reflective fiber unit |
| Sensing method | Reflective |
| Head style | M6 threaded; top view; approximately 60° aperture |
| Sensing distance | E3X-HD: GIGA 1,400 mm; standard 600 mm; high-speed 400 mm; super-high-speed 180 mm. E3NX-FA: GIGA 2,100 mm; standard 900 mm; high-speed 600 mm; super-high-speed 180 mm. |
| Optical fiber | Plastic optical fiber; nickel-plated brass sensing head |
| Cable length | 2 m |
| Minimum bend radius | R25; first 10 mm is unbendable |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C |
| Compatible amplifier | Use with a compatible Omron fiber amplifier; cited family specification is with E3S-X3CE4 |
| Physical Weight (kg) | 0.040 (approx., packaged) |
| Dimensions L x W x H (cm) | See Omron E32-CC200 dimensional drawing; an overall L × W × H value is not stated in the model specifications. |
| Supply status | Active; Omron lists this exact model as selling and standard-stock. |
Engineering suggestions require suitability checks for your installation.
A reflective fiber head can bring optical sensing into confined fixture locations.
Mount the M6 head with its sensing face aimed at the target, then confirm range and alignment with the selected compatible amplifier and target material.
The IP67 head and fiber arrangement suit locations where the optical head must be compact.
Verify the installation environment, routing and 25 mm minimum bend radius, and keep the amplifier within its own ratings.
