Omron E2B-M18KN16-M1-C1: 16 mm industrial sensor, NPN output, M12 connector.
The Omron E2B-M18KN16-M1-C1 is an E2B M18 inductive proximity sensor with a 16 mm sensing distance and NPN normally-open output. This unshielded, short-body model uses a M12 connector. The nickel-brass housing and IP67 construction suit industrial presence detection when installed within the specified electrical and mechanical limits.

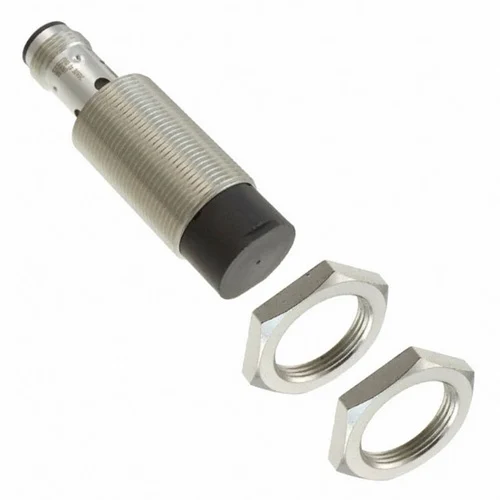

Omron E2B-M18KN16-M1-C1 M18 unshielded Inductive Proximity Sensor with 16 mm sensing distance, NPN output and M12 connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| Product type | M18 inductive proximity sensor |
| Sensing method | Inductive |
| Sensing distance | 16 mm |
| Mounting | Unshielded / non-flush |
| Output | NPN normally open (NO) |
| Connection | M12 connector |
| Body style | short-body |
| Thread size | M18 |
| Housing material | Nickel-brass |
| Rated supply voltage | 10 to 30 VDC |
| Maximum load current | 200 mA |
| Degree of protection | IP67 |
| Operating temperature | -25 to 70 °C |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect a metal component at a machine station before the next automated operation.
Set the unshielded M18 sensor at its rated 16 mm distance and connect the NPN normally-open output to a compatible input.
Provide a non-contact position signal for a metal fixture or moving machine element.
Use the short-body model with the specified M12 connector and keep the target within its rated sensing distance.
