USD 22.24

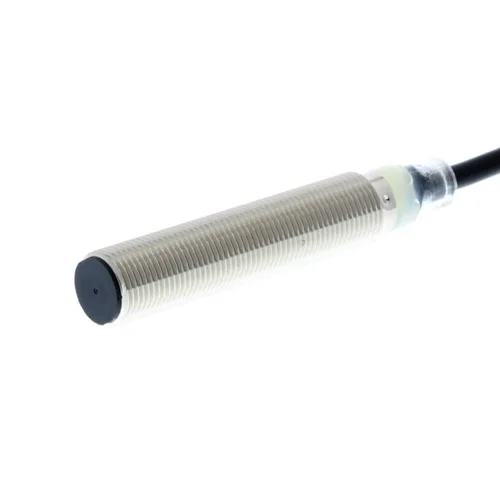

Omron E2B-M12LS04-WZ-C1 2M M12 long-body inductive proximity sensor with 4 mm sensing distance and NPN, normally open output.
The E2B-M12LS04-WZ-C1 2M is an M12 cylindrical inductive proximity sensor from the Omron E2B series. This long-body model has a 4 mm sensing distance, a shielded sensing face and a three-wire DC NPN, normally open output with 2 m prewired connection. Confirm mounting dimensions and load wiring against the Omron diagram before installation.
M12 long-body E2B proximity sensor with 4 mm sensing distance, shielded sensing face and NPN, normally open output.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| Sensing distance | 4 mm |
| Sensing face | Shielded |
| Body style | Long-body |
| Thread size | M12 |
| Output | NPN, normally open |
| Connection | 2 m prewired cable |
| Rated supply voltage | 10 to 30 VDC (E2B series) |
| Degree of protection | IP67 (E2B series) |
| Supply status | Unknown; exact model specifications confirmed from Omron catalog data, current supply status not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect a metal target in a machine fixture or assembly station.
Choose body style and sensing distance to match installation clearance and target position.
Monitor the presence of metal components on a production line.
Use the specified NPN or PNP normally open output with a compatible controller input.
