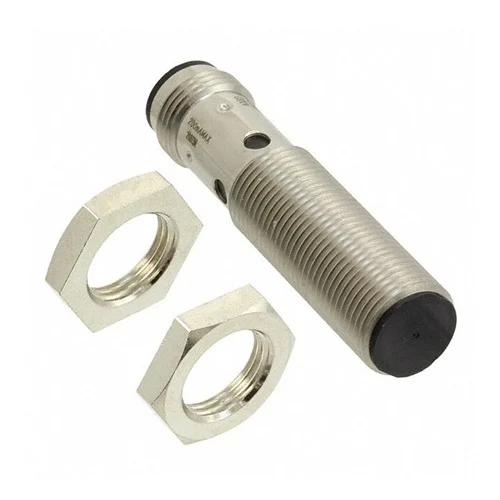

Omron E2B-M12KS04-M1-C1 M12 inductive proximity sensor with 4 mm sensing distance, shielded face, NPN, normally open output and M12 connector.
The E2B-M12KS04-M1-C1 is an M12 cylindrical inductive proximity sensor in Omron's E2B series. Its shielded sensing face provides a nominal 4 mm sensing distance. This short-body model has NPN, normally open output and uses a M12 connector. Check the sensor wiring and mounting clearance against the Omron data before installation.
E2B M12 proximity sensor with 4 mm sensing distance, shielded face, NPN, normally open output and M12 connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| Sensing distance | 4 mm |
| Sensing face | Shielded |
| Body style | Short-body |
| Thread size | M12 |
| Output | NPN, normally open |
| Connection | M12 connector |
| Rated supply voltage | 10 to 30 VDC |
| Maximum load current | 200 mA |
| Degree of protection | IP67 |
| Supply status | Unknown; exact specifications confirmed from Omron catalog data, current supply status not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect metal targets at a repeatable point in automated equipment.
Match NPN or PNP normally open output to the compatible control input and respect the selected sensing distance.
Monitor metal parts as they pass through a conveyor station.
Use the M12 body and M12 connector that suit the installation arrangement.
