USD 21.81

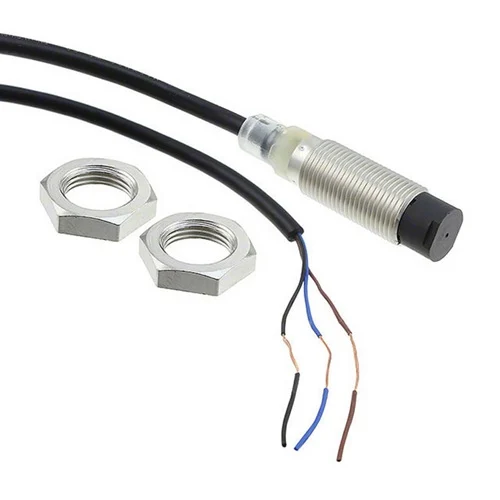

Omron E2B-M12KN08-WZ-C1 2M M12 inductive proximity sensor with 8 mm sensing distance, unshielded mounting and NPN, normally open output.
The E2B-M12KN08-WZ-C1 2M is an M12 cylindrical inductive proximity sensor from Omron's E2B series. The 8 mm model uses a unshielded sensing face and provides a three-wire DC NPN, normally open output through a 2 m prewired cable. Its compact body suits standard machine sensing installations. Confirm load wiring and sensor mounting clearance using the manufacturer diagram.
M12 E2B proximity sensor with 8 mm sensing distance, unshielded sensing face, NPN, normally open output and 2 m cable.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| Sensing distance | 8 mm |
| Sensing face | Unshielded |
| Thread size | M12 |
| Output | NPN, normally open |
| Connection | 2 m prewired cable |
| Rated supply voltage | 10 to 30 VDC (E2B series) |
| Degree of protection | IP67 (E2B series) |
| Supply status | Unknown; exact model specifications confirmed from Omron catalog data, current supply status not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect a metal target in a machine fixture or assembly station.
Select the shielded or unshielded model based on the available mounting clearance and required sensing distance.
Monitor the presence of metal components moving through a production line.
Use the specified NPN or PNP normally open output with a compatible control input.
