Name: Omron DRT2-MD16S DeviceNet I/O Terminal - INOSAKI
SKU: Omron-DRT2-MD16S
Price: 158.05 USD
Availability: InStock

Technical Overview

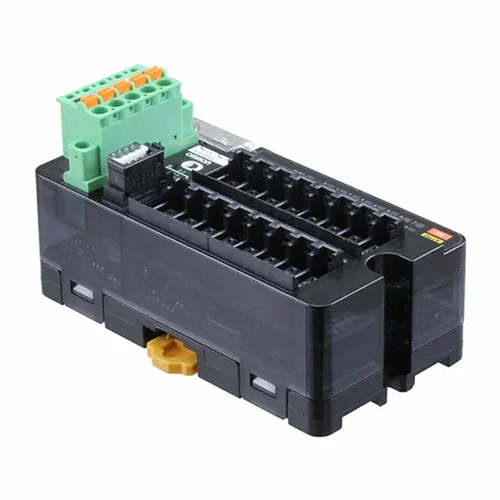

The Omron DRT2-MD16S is a Smart Slave remote I/O terminal for DeviceNet networks, featuring a mixed configuration of 8 digital inputs and 8 digital outputs. Designed for efficiency, it utilizes industry-standard e-CON connectors, which allow for the quick connection of sensors and other devices without the need for special tools, significantly reducing wiring time. This NPN-type module (positive common for inputs, negative common for outputs) is DIN rail mountable and incorporates Smart Slave functions for advanced diagnostics, preventative maintenance, and troubleshooting, including load short-circuit detection and monitoring of network voltage.

Key Features

8 NPN digital inputs and 8 NPN digital outputs
DeviceNet communication protocol
e-CON connectors for fast, tool-free wiring
DIN rail or M4 screw mounting
Equipped with Smart Slave functions for preventative maintenance
Load short-circuit detection for outputs
Monitors network power supply voltage and communications errors

Technical Specification Matrix

Parameter	Value
Product Type	DeviceNet Remote I/O Terminal
I/O Points	8 Inputs / 8 Outputs
I/O Type	NPN (Input: + common, Output: - common)
Communications Protocol	DeviceNet
Communications Power Supply Voltage	11 to 25 VDC
I/O Power Supply Voltage	20.4 to 26.4 VDC
Rated Output Current	0.3 A/point, 2.4 A/common
Connection Type	e-CON Connectors
Mounting	DIN 35mm-track or M4 screw mounting
Ambient Operating Temperature	-10°C to 55°C
Dielectric Strength	500 VAC between isolated circuits
Vibration Resistance	10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s²
Shock Resistance	150m/s²

Industrial Applications

1. Conveyor System Diverter Gate Control

In a logistics or packaging facility, this module can be placed in a local control box on a conveyor line. Photoelectric sensors connected to the 8 inputs detect the position and type of packages, while the 8 outputs control pneumatic solenoid valves to actuate diverter gates, sorting packages into different lanes.

Problem Solved

Provides a compact, decentralized I/O solution that reduces long cable runs back to a main PLC cabinet. The 11-25 VDC communication power and 24 VDC I/O power are standard for conveyor systems, and the 0.3A output is sufficient for most industrial solenoid valves.

DeviceNetDecentralized I/OConveyor ControlSolenoid Valve24 VDC

2. Small Automated Assembly Station

Used to control a semi-automated workstation for small part assembly. Inputs would be connected to part-present sensors, light curtain triggers, and operator push-buttons. Outputs would control pneumatic clamps, small DC motors for screwdriving, and indicator lights for operational status.

Problem Solved

Offers a balanced 8-in/8-out configuration perfect for a single, focused task cell. Its DIN rail mounting allows for easy integration into a small electrical enclosure. The e-CON connectors facilitate rapid setup and easy replacement by maintenance staff without extensive rewiring.

Assembly AutomationPneumatic ControlDIN Rail MountOperator Interfacee-CON Connector

3. Quality Control Inspection Jig

Integrates into a manual or automated inspection jig. Proximity sensors or a vision system trigger connected to the inputs confirm the part is correctly positioned. The outputs can then actuate a pass/fail stamping mechanism, a rejection pusher, or illuminate green/red status indicators for the operator.

Problem Solved

The module's fast 1.5ms ON/OFF delay time is suitable for time-critical inspection and rejection tasks. Its robust shock (150m/s²) and vibration resistance ensures reliable operation in an industrial environment where mechanical actuators are constantly in motion.

Quality ControlInspection JigReject MechanismVibration ResistanceFast Response
