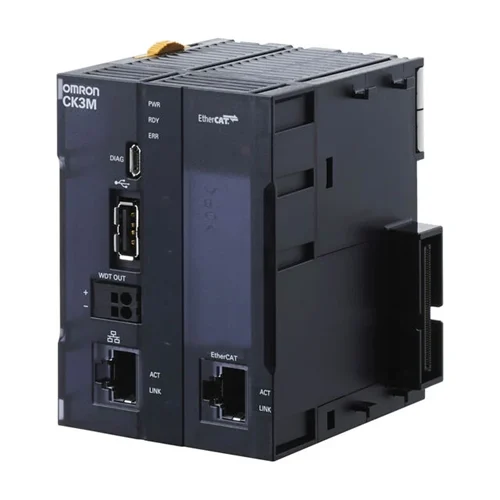

Name: Omron CK3M-CPU121 Programmable Multi-Axis Motion Controller CPU - INOSAKI
SKU: Omron-CK3M-CPU121
Price: 2839.89 USD
Availability: InStock

Technical Overview

The Omron CK3M-CPU121 is a next-generation programmable multi-axis motion controller CPU unit designed to bring PMAC's advanced nanoscale motion capabilities into a highly compact form factor. Equipped with a dual-core 1.0 GHz processor, 1 GB RAM, and 1 GB Flash memory, this controller effortlessly manages up to 8 synchronized axes via EtherCAT. Built to serve semiconductor manufacturing, ultra-precision machining, and optical inspection, it offers an astonishingly fast minimum servo cycle time of 25 μs, natively executing G-Code, ANSI C, and original PMAC algorithms for complex multi-vendor machinery architectures.

Key Features

Controls up to 8 synchronized EtherCAT servo axes [1.2]
Driven by a powerful dual-core 1.0 GHz CPU with 1 GB RAM and 1 GB Flash memory
Multi-vendor connectivity integrating EtherCAT master and EtherNet/IP networks
Supports native programming via G-Code, ANSI C, and original PMAC language
High-speed deterministic servo cycle time of 25 μs for 5 axes
Extremely compact profile that is 1/3 the size of conventional PMAC UMAC systems
Built-in robust support for precision linear motor drive control

Technical Specification Matrix

Parameter	Value
Supply Voltage	5 VDC
Maximum Controlled Axes	8 (via EtherCAT)
Processor	1.0 GHz (Dual-Core)
Memory	1 GB RAM, 1 GB Flash
Minimum Servo Cycle Time	25 μs (per 5 axes)
Communication Ports	EtherCAT Master, EtherNet/IP (TCP/IP), USB
Operating Temperature	0 to +55 °C
Mounting Type	DIN Rail
Dimensions (H x W x D)	90 mm x 63.2 mm x 80 mm
Weight	230 g

Industrial Applications

1. Semiconductor Wafer Fabrication Control

Utilizing the CK3M-CPU121 to control extremely precise wafer positioning and lithography deposition.

Problem Solved

In nanoscale semiconductor fabrication, generic logic controllers lack the microsecond-level determinism required. This controller's 25μs servo cycle and PMAC heritage eliminate synchronization latency, preventing fatal lithographic alignment defects on the nanometer scale.

Nanoscale positioning25μs servo cyclePMAC algorithmsEtherCAT multi-axisLinear motor drive

2. High-Precision CNC Machining Centers

Integrating the CPU into complex multi-axis milling or turning machinery utilizing native G-Code capabilities.

Problem Solved

Traditional setups require separate G-Code interpreters and discrete motion cards. The CK3M-CPU121 runs G-Code natively and dynamically coordinates up to 8 axes over EtherCAT, reducing hardware footprint by 66% while improving servo precision during intricate tooling paths.

Native G-Code executionANSI C8-axis EtherCATPrecision machiningDeterministic latency

3. Automated Optical Inspection (AOI) Systems

Deploying the unit in PCB or flat-panel display inspection machines, synchronizing ultra-fast gantry movements with camera triggers.

Problem Solved

Vision inspection at rapid line speeds often suffers from image blur due to mismatched axis positions and camera strobes. The CPU's dual-core 1.0GHz processor and EtherCAT deterministic network ensure exact spatial coordination, triggering cameras exactly on position coordinates with zero variance.

AOI synchronizationEtherNet/IP integrationHigh-speed triggersGantry kinematicsMulti-vendor connectivity
