1. High-Precision 5-Axis CNC Machining Centers

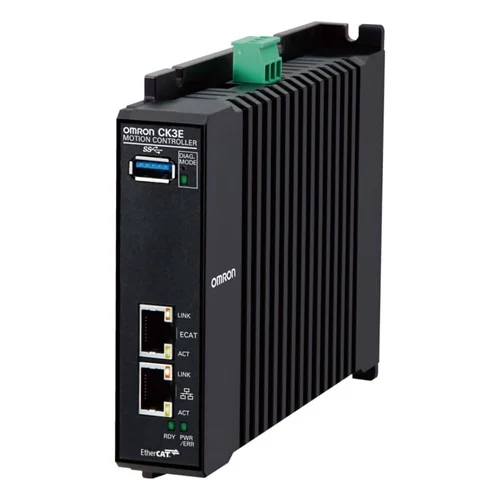

In modern 5-axis or complex CNC machining centers, the precise synchronization of multiple servo motors is critical for tight tolerances and smooth interpolation. The CK3E-1310 processes up to 16 synchronized axes with a motion control period as fast as 250 μs via an EtherCAT master, ensuring flawless multi-axis coordination and superior surface finishes on machined components.
Problem SolvedEliminates network latency and jitter issues found in legacy controllers, vastly improving trajectory control and cutting accuracy during complex 3D interpolation.
16 synchronized axes250 μs control periodEtherCAT masterTrajectory interpolationµPower PMAC architecture
2. High-Speed Semiconductor Wafer Handling Robotics
Semiconductor manufacturing relies heavily on deterministic, high-speed robotic arms to pick and place fragile silicon wafers with microscopic precision inside cleanrooms. The CK3E-1310 leverages its 100 Mbps EtherCAT network to precisely coordinate advanced robotic kinematics while its ultra-compact 28.6 mm profile saves highly expensive cleanroom cabinet real estate.
Problem SolvedResolves the challenge of fitting high-performance multi-axis computation hardware into highly constrained cleanroom panels without sacrificing processing capability.
28.6 mm ultra-compact widthRobotic kinematics100 Mbps EtherCATSub-millimeter positioning
3. Continuous-Duty Industrial Gantry Packaging Systems
High-throughput packaging machines using gantry robotics require highly reliable coordination of pick-and-place actuators, conveyors, and vision systems. The CK3E-1310 reliably controls the entire 16-axis line while enduring continuous operational stress, proven by its adherence to IEC 60068-2-27 shock resistance (147 m/s2) and robust 0 to 45°C thermal rating.
Problem SolvedAddresses synchronization drift and mitigates hardware failures caused by mechanical vibration and harsh environments typical in fast-paced industrial packaging lines.
IEC 60068-2-27 shock resistanceGantry robotics16-axis control24 VDC power supplyIEC 60068-2-6 vibration resistance
