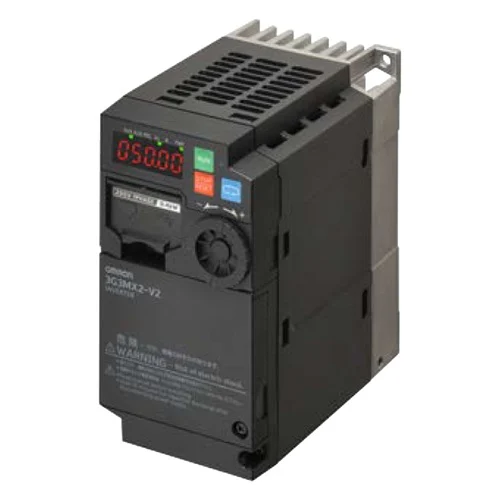

Name: Omron 3G3MX2-AB015-V2 Variable Frequency Drive (VFD) 1.5kW 200-240V - INOSAKI
SKU: Omron-3G3MX2-AB015-V2
Price: 302.97 USD
Availability: InStock

Technical Overview

The Omron 3G3MX2-AB015-V2 is a highly versatile, multi-function compact inverter (Variable Frequency Drive) from the MX2 Series V2 lineup. Designed to deliver advanced motor control while maximizing space efficiency, it supports both standard induction and permanent magnet (PM) motors. Utilizing sensorless vector control, this drive achieves a robust starting torque of 200% at just 0.5 Hz, making it suitable for demanding industrial loads. Operating on a single-phase 200-240V input, it features an extended output frequency range up to 590 Hz. Key features include built-in logic programming, positioning functionality, a dual power rating system (1.5 kW Normal Duty / 2.2 kW Light Duty), and embedded safety functions complying with ISO13849-1. With a compact IP20 chassis, it easily integrates into tight electrical panels, combining energy efficiency with durability for pumps, fans, and complex automation machinery.

Key Features

Advanced sensorless current vector control for precise motor manipulation
High starting torque of 200% at 0.5 Hz for initiating heavy or stationary loads
Dual duty rating supporting 1.5 kW (Normal Duty) and 2.2 kW (Light Duty) applications
Embedded safety functionality compliant with ISO13849-1 (double input circuit and external device monitor)
Wide output frequency range extended from 0.01 Hz up to 590 Hz
Built-in logic programming and simple positioning functionalities without needing external PLCs
Fully compatible with both traditional induction motors and highly efficient permanent magnet (PM) motors
Compact IP20 enclosure suitable for space-constrained chassis mounting
USB Micro-B port for easy PC programming and monitoring via Omron's CX-Drive tool

Technical Specification Matrix

Parameter	Value
Input Phase	Single Phase
Input Voltage	200 to 240 VAC
Rated Power (Normal Duty)	1.5 kW (2 HP)
Rated Power (Light Duty)	2.2 kW
Maximum Output Frequency	590 Hz
IP Rating	IP20
Dimensions (W x H x D)	108 mm x 128 mm x 173.5 mm
Supported Motor Types	Induction, Permanent Magnet (PM)
Control Method	Sensorless Vector Control
Safety Compliance	ISO13849-1

Industrial Applications

1. Material Handling and Sorting Conveyors

Integrated into distribution center conveyor systems, the VFD operates a 1.5 kW permanent magnet or induction motor to drive belts moving heavy loads.

Problem Solved

Provides the high starting torque (200% at 0.5 Hz) required to initiate motion on fully loaded conveyor belts without stalling, while the built-in positioning logic ensures precise stopping for routing and sorting mechanisms.

High Starting Torque200% at 0.5 HzSensorless Vector ControlPositioning FunctionalityPermanent Magnet Motor

2. Centrifugal Pump Control for Fluid Transfer

Utilized in municipal or industrial water treatment facilities to control single-phase powered 1.5 kW centrifugal pumps.

Problem Solved

Eliminates excessive inrush currents associated with direct-on-line starts and uses precise speed modulation to match flow/pressure demand, resulting in reduced pipe stress (water hammer) and significant energy savings.

Centrifugal PumpPID ControlVariable SpeedInrush Current ReductionEnergy Efficiency

3. Industrial Exhaust and Ventilation Fans

Employed within factory HVAC systems to manage heavy-duty exhaust and ventilation fans, taking advantage of its 2.2 kW Light Duty (LD) rating.

Problem Solved

Dynamically adjusts fan speed based on ambient temperature or air quality requirements, removing the need for restrictive mechanical dampers and reducing both mechanical wear and acoustic noise.

Light Duty 2.2 kWHVAC VentilationVariable Frequency DriveAcoustic Noise ReductionMechanical Damper Elimination
