USD 281.57
0.75 kW 240V single-phase VFD with 200% starting torque and PM motor control. Efficient motor control for industrial agitators, HVAC fans, and precision conveyor indexing.

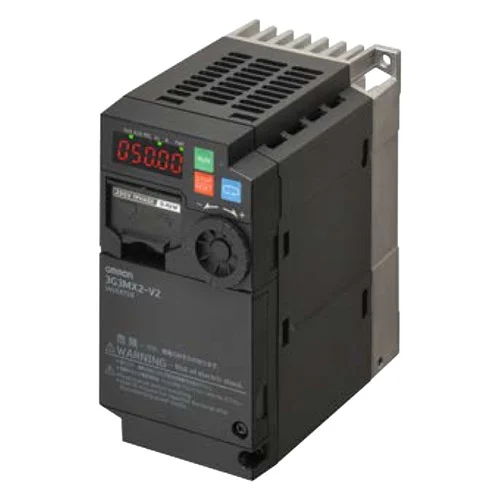

The Omron 3G3MX2-AB007-V2 is a multi-function compact frequency inverter designed for efficient motor control in industrial applications. Operating on a single-phase 200-240V AC input, it delivers a 3-phase output with up to 0.75 kW for constant torque (Normal Duty) and 1.1 kW for variable torque (Light Duty) applications. It supports both open-loop V/f and open-loop vector control methods, enabling smooth torque and speed regulation for induction and permanent magnet motors. The drive features a built-in EMC filter, IP20 enclosure rating, and standard RS-485 Modbus and USB communication ports, making it highly adaptable for conveyors, pumps, and automation equipment.
| Parameter | Value |
|---|---|
| Input Voltage | Single-phase 200 to 240 V AC [2.7] |
| Output Voltage | 3-phase 200 to 240 V |
| Motor Output (Normal Duty / Constant Torque) | 0.75 kW |
| Motor Output (Light Duty / Variable Torque) | 1.1 kW |
| Rated Input Current (Normal Duty) | 11.5 A |
| Rated Input Current (Light Duty) | 13.8 A |
| Control Method | Open loop V/f, Open loop vector |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 108 mm x 128 mm x 173.5 mm |
| Weight | Approx. 1.6 kg |
Manufacturers need precise speed control for small indexing conveyors moving lightweight components, but frequently only have single-phase 230V facility power available on the plant floor.
The VFD takes single-phase 200-240V AC input and converts it to 3-phase power, safely driving up to 0.75kW motors with high starting torque using its open-loop vector control.
Small commercial buildings require energy-efficient variable control of centrifugal fans or circulation pumps without tripping on high starting currents, utilizing standard building 230V power.
Operating in Light Duty mode, the inverter safely handles up to 1.1 kW variable torque loads. The built-in EMC filter prevents electrical noise from interfering with sensitive building management systems.
Food and chemical pilot plants require agitation equipment that can maintain steady torque across highly variable fluid viscosities, specifically at low rotational speeds.
The drive's open-loop vector control provides high starting torque and precise speed regulation for steady agitation, comfortably handling heavy 0.75 kW constant torque demands.
