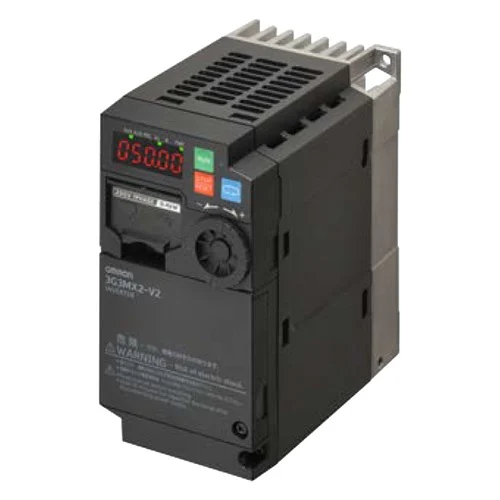

Name: Omron 3G3MX2-AB002-V2 AC Variable Frequency Drive - INOSAKI
SKU: Omron-3G3MX2-AB002-V2
Price: 254.89 USD
Availability: InStock

Technical Overview

The Omron 3G3MX2-AB002-V2 is a high-performance multi-function compact inverter from the MX2 V2 series, specifically engineered to harmonize advanced motor and machine control. It delivers smooth control down to zero speed, highly precise cyclic operations, and robust torque control capability in an open loop. Designed for standalone and integrated machine automation, it features built-in logic programming, integrated positioning functions, and comprehensive safety compliance.

Key Features

200% starting torque capability [1.5]
Torque control in open loop configuration
Double overload rating: VT 120% / 1 min and CT 150% / 1 min
IM and PM motor control compatibility
Integrated safety conforming to ISO13849-1 Category 3 performance level PLd
Built-in logic programming and positioning functionality

Technical Specification Matrix

Parameter	Value
Input Voltage Class	200-240 VAC
Input Phase	Single-Phase
Output Power Rating	0.2 kW (1/4 HP)
Series	MX2 V2
Overload Capacity (CT)	150% for 60 seconds
Overload Capacity (VT)	120% for 60 seconds
Starting Torque	200%

Industrial Applications

1. Conveyor Belt Speed Control in Assembly Lines

Integrating the 0.2 kW single-phase VFD to dynamically regulate small-scale packaging or sorting conveyor systems. The built-in logic programming and 200% starting torque ensure stable, jerk-free starts under load.

Problem Solved

Eliminates mechanical wear from abrupt motor starts and provides precise variable speeds for different stages of the production cycle without needing an external PLC.

Variable Speed ControlHigh Starting TorqueBuilt-in Logic ProgrammingCyclic Operations

2. Precision Rotary Indexing Tables

Employing the VFD's open-loop torque control and built-in positioning functionality to drive an indexing table or automated rotary fixture at highly controlled low speeds.

Problem Solved

Provides smooth deceleration and holding torque at zero speed, effectively eliminating the need for complex, costly closed-loop servo systems in basic indexing and orienting tasks.

Open-Loop Torque ControlPositioning FunctionalityZero Speed ControlRotary Indexing

3. Energy-Efficient HVAC Fan & Pump Control

Utilizing the drive's variable torque (VT) capabilities to control the speed of small 1/4 HP blowers, fans, or centrifugal pumps in fluid processing equipment.

Problem Solved

Prevents energy waste and mechanical stress by modulating fan/pump speed dynamically instead of running motors continuously at 100% capacity with a throttling valve or damper.

Variable Torque (VT) RatingFlow RegulationEnergy OptimizationHVAC Control
