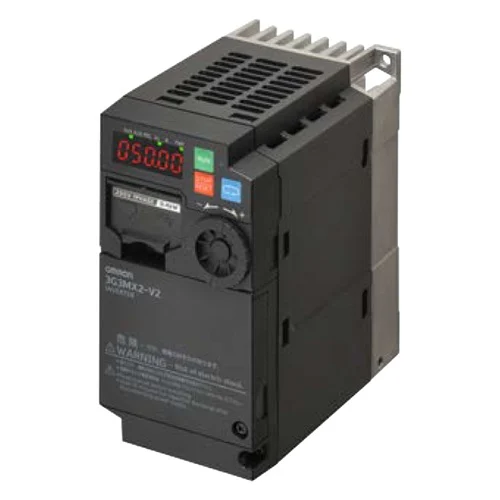

Name: Omron 3G3MX2-A4110-V2 11kW Variable Frequency Drive - INOSAKI
SKU: Omron-3G3MX2-A4110-V2
Price: 575.11 USD
Availability: InStock

Technical Overview

The Omron 3G3MX2-A4110-V2 is a high-performance, multi-function variable frequency drive (VFD) designed for 3-phase 400 VAC electrical systems. It delivers an 11 kW (15 HP) normal duty rating and a 15 kW (20 HP) light duty rating. Part of the updated MX2-V2 series, this compact inverter features advanced motor control algorithms that provide smooth regulation down to zero speed, precise cyclic operation, and built-in simple positioning. It supports both open loop V/f and vector control methods, ensuring robust compatibility with induction and permanent magnet (PM) motors. The V2 iteration upgrades the output frequency range to 0.01 up to 590 Hz, offering exceptional flexibility for heavy industrial automation, conveyor systems, and fluid pump control.

Key Features

Compatible with both induction and permanent magnet (PM) motors [2.2]
Multi-function AC drive with 3-phase 400 VAC input
11 kW (29.4 A) Normal Duty and 15 kW (38.0 A) Light Duty capacity
Advanced algorithms for smooth control down to zero speed
Built-in simple positioning and phase difference pulse input
Extended output frequency range from 0.01 to 590 Hz
Supports Open loop V/f and vector control methods
IP20 degree of protection enclosure

Technical Specification Matrix

Parameter	Value
Input Voltage	3-phase 380 to 480 VAC
Max. Motor Capacity (Normal Load)	11 kW (15 HP)
Max. Motor Capacity (Light Load)	15 kW (20 HP)
Rated Output Current (Normal Load)	29.4 A
Rated Output Current (Light Load)	38.0 A
Output Frequency Range	0.01 to 590 Hz
IP Rating	IP20
Dimensions (W x H x D)	180 mm x 296 mm x 168 mm
Motor Control Methods	Open loop V/f, Open loop vector

Industrial Applications

1. Industrial Conveyor and Material Handling Systems

High-capacity conveyor lines in distribution and manufacturing centers require smooth motor starts and stops to prevent load shifting while maintaining highly accurate positional control for automated sorting.

Problem Solved

Prevents sudden acceleration jerks and load slippage on massive 11 kW conveyor belts, utilizing its built-in simple positioning and zero-speed control to ensure stable item transfer.

Vector controlZero speed control11 kW normal loadSimple positioning

2. Commercial HVAC and High-Capacity Fan Control

Large-scale HVAC systems and exhaust fans require energy-efficient airflow regulation based on real-time environmental demands rather than running at constant speeds.

Problem Solved

Replaces energy-wasting direct-on-line fan motors with dynamic frequency control using its 15 kW light duty rating, drastically reducing power consumption and mechanical wear on fan belts.

15 kW light dutyV/f control3-phase 400 VACVariable speed drive

3. Industrial Fluid Pumping and Pressure Regulation

Municipal water or industrial liquid transfer facilities need robust pumping systems that can dynamically ramp motor torque up and down to handle variable flow demands.

Problem Solved

Eliminates destructive hydraulic shock (water hammer) in pipeline networks during startup/shutdown phases while utilizing the 590 Hz frequency maximum for high-speed impeller regulation.

Open loop vector38.0 A light load current590 Hz maximum frequencyPM motor compatibility
