Compact 400V 3-phase Variable Frequency Drive (VFD) with 0.4kW normal duty and 0.75kW light duty ratings. Features 200% starting torque, permanent magnet motor control, and integrated safety functions for efficient industrial motor management.

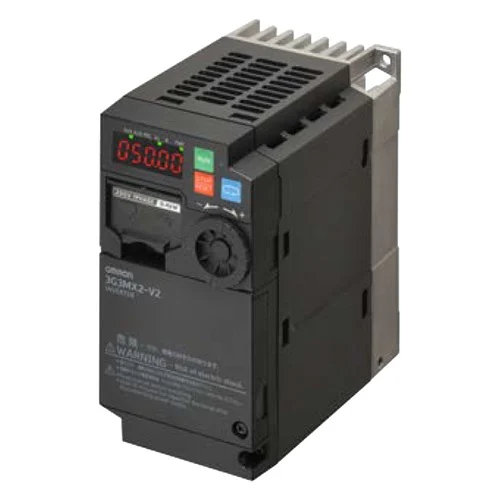

The Omron 3G3MX2-A4004-V2 is a multi-function compact inverter (Variable Frequency Drive / VFD) engineered for reliable and efficient motor control in industrial environments. Designed for 3-phase 400VAC systems, it provides a normal duty (ND) output of 0.4 kW (approx. 1/2 HP) and handles light duty (LD) loads up to 0.75 kW. With an IP20 degree of protection, it features open loop V/f and sensorless vector control methods, making it compatible with induction, asynchronous, and permanent magnet (PM) motors. The drive offers advanced capabilities such as simple positioning, high starting torque of 200% at 0.5 Hz, and seamless integration into automation systems via built-in MODBUS and multiple optional fieldbus communication protocols.
| Parameter | Value |
|---|---|
| Input Voltage | 3-Phase 380 to 480 VAC |
| Rated Output Current | 1.8 A (Normal Duty) / 2.1 A (Light Duty) |
| Motor Capacity (Normal Duty) | 0.4 kW |
| Motor Capacity (Light Duty) | 0.75 kW |
| Output Frequency Range | 0.01 to 590 Hz |
| Carrier Frequency | 2 to 15 kHz |
| Control Method | V/f control, Sensorless vector control |
| Degree of Protection | IP20 |
| Starting Torque | 200% at 0.5 Hz |
| Overload Tolerance | 150% for 60s (ND) / 120% for 60s (LD) |
Regulating the speed of a material handling conveyor using the 3G3MX2-A4004-V2 to adapt to varying production throughput requirements.
Prevents mechanical shock during start/stop phases and reduces energy consumption by accurately matching the motor RPM to the exact load demand.
Driving standard 3-phase ventilation fans in light-duty configurations up to 0.75 kW.
Eliminates full-speed continuous operation waste. The VFD scales the motor speed according to airflow requirements, yielding significant energy savings and reducing acoustic noise.
Controlling a small indexing spindle or feed roller in an automated packaging line using the integrated simple positioning feature.
Replaces expensive servo systems for applications requiring basic point-to-point positioning and torque control, lowering hardware costs while maintaining up to 200% starting torque.
