Name: Omron 3G3AX-MX2-ECT EtherCAT Communication Unit for MX2 Inverters - INOSAKI
SKU: Omron-3G3AX-MX2-ECT
Price: 236.25 USD
Availability: InStock

Technical Overview

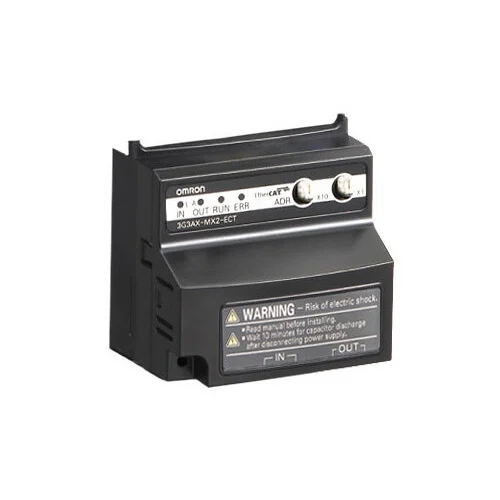

The Omron 3G3AX-MX2-ECT is an advanced EtherCAT communication option board specifically engineered for Omron MX2 series multi-functional compact frequency inverters. This plug-in module enables deterministic, high-speed real-time communication by allowing the inverter to operate as a slave on an EtherCAT network (CoE profile). Designed for seamless integration into Sysmac Studio automation platforms alongside NJ/NX controllers, the unit features dual RJ45 Ethernet ports for direct daisy-chaining and eliminates the need for separate network wiring or external power supplies.

Key Features

Direct plug-in module integration with Omron MX2 series inverters requiring no external wiring
Supports deterministic, high-speed EtherCAT communication (CoE profile)
Equipped with dual RJ45 Ethernet ports (IN/OUT) allowing for daisy-chain networking
Compatible with Sysmac Studio for seamless operation with Omron NJ and NX series controllers
Maintains the compact footprint of the host drive via direct slot insertion
CE, UL, and CSA certified, and RoHS compliant for global industrial deployment

Technical Specification Matrix

Parameter	Value
Communication Protocol	EtherCAT (CoE profile)
Connection Interface	2 x RJ45 Ethernet ports (IN/OUT)
Power Supply	Supplied from the inverter
Protective Structure	Open type (IP20)
Ambient Operating Temperature	-10 to +50°C
Ambient Storage Temperature	-20 to +65°C
Ambient Operating Humidity	20% to 90% RH (with no condensation)
Weight	100 g max
Supported Unit Versions	Version 1.0 and 1.1

Industrial Applications

1. Multi-Axis Conveyor Line Synchronization

In large-scale packaging and bottling facilities, multiple conveyor belts must operate in perfect synchronization to avoid product collisions and maintain throughput. The Omron 3G3AX-MX2-ECT connects MX2 inverters to an EtherCAT master, enabling deterministic, sub-millisecond control across all drives.

Problem Solved

Eliminates the lag and electrical noise susceptibility of traditional analog speed controls, preventing material bottlenecking in complex multi-drive transfer systems.

EtherCAT Master IntegrationDeterministic ControlMulti-Axis SynchronizationCoE Profile

2. Automated Storage and Retrieval Systems (AS/RS)

Material handling hoists and cranes require robust inverters capable of generating immediate, high starting torque. The 3G3AX-MX2-ECT links these powerful MX2 drives to safety and logic controllers over a high-speed network, precisely translating position data and coordinating lifting cycles.

Problem Solved

Replaces cumbersome hardwiring for speed profiles with a streamlined RJ45 daisy-chain network, while reliably operating in warehouse temperatures ranging from -10°C to 50°C.

RJ45 Daisy-ChainingReal-Time Speed AdjustmentSysmac Studio CompatibleIP20 Open Type

3. Industrial Textile Winding and Tensioning

Continuous winding operations require dynamic speed regulation to maintain constant web tension as spool diameters increase. Using this EtherCAT module allows system controllers to execute rapid, real-time speed and torque overrides to the MX2 drive, functioning flawlessly even at 90% non-condensing humidity.

Problem Solved

Solves material snapping or slackening issues by overcoming the high latency of standard fieldbuses, allowing instant network-based tension correction.

Torque Override LimitsHigh-Speed Network SlaveReal-Time TelemetryEtherCAT Networking
