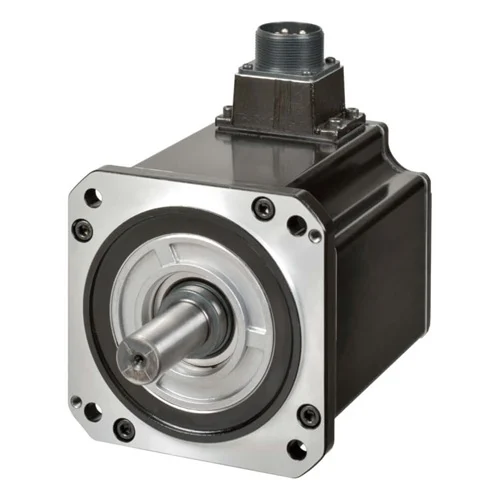

Name: Omron 1S Series AC Servo Motor R88M-1L3K030C-S2 - INOSAKI
SKU: Omron-R88M-1L3K030C-S2
Price: 989.19 USD
Availability: InStock

Technical Overview

The Omron R88M-1L3K030C-S2 is a high-performance 1S-Series AC servo motor designed for demanding precision motion control and industrial automation applications. Operating on a 400 V three-phase drive supply, it boasts a 3 kW power rating and a 3000 RPM rated speed, delivering a consistent rated torque of 9.55 Nm and a peak torque of 28.7 Nm. Its robust 23-bit absolute encoder operates without a battery, offering exceptional positional accuracy while lowering maintenance requirements. With a 130 mm square flange, a 22 mm keyed and tapped shaft, and seamless EtherCAT compatibility, this motor ensures reliable, low-inertia operation in robotics, CNC machinery, and packaging systems.

Key Features

3 kW rated output and 400 VAC three-phase drive supply voltage for heavy-duty industrial machinery.
Provides a strong continuous rated torque of 9.55 Nm with a peak torque allowance of up to 28.7 Nm.
Equipped with a high-resolution 23-bit battery-free absolute encoder for ultra-precise, maintenance-free position feedback.
Optimized for EtherCAT servo control networking, enabling seamless real-time synchronization.
Standardized 130 mm square flange design with a durable 22 mm keyed and tapped shaft for secure mechanical power transmission.
Environmentally conscious and robust design that is RoHS compliant (supplied without brake or oil seal).

Technical Specification Matrix

Parameter	Value
Drive Supply Voltage	400 V Three Phase
Rated Output	3 kW
Rated Speed	3000 r/min
Rated Torque	9.55 Nm
Peak Torque	28.7 Nm
Encoder Type	23-Bit Absolute without battery
Servo Control Method	EtherCAT
Flange Size Square (Lc)	130 mm
Shaft Diameter	22 mm
Product Weight	11.5 kg (11500 g)
Shaft Interface	Key and Tap
Brake	No
Oil Seal	No

Industrial Applications

1. High-Speed Automated Packaging Lines

This servo motor serves as the prime mover for synchronized multi-axis operations in packaging machines, handling tasks like rotary cutting, cross-sealing, and index feeding that require precise continuous acceleration.

Problem Solved

Conventional absolute encoders rely on batteries, introducing a point of failure and maintenance downtime. The R88M-1L3K030C-S2 utilizes a battery-free 23-bit encoder that inherently solves this maintenance bottleneck, while its 28.7 Nm peak torque effortlessly handles dynamic load shifts during rapid start-stop cycles without stalling.

23-Bit Absolute Encoder28.7 Nm Peak TorqueBattery-FreeEtherCAT Synchronization

2. Heavy Payload Cartesian Gantry Systems

Integrated into XYZ cartesian robots or high-payload gantries used for end-of-line material handling, stacking, or automotive parts palletizing.

Problem Solved

Moving heavy, cantilevered loads quickly requires significant mechanical rigidity and torque control. This motor guarantees smooth load transition via its reliable 9.55 Nm rated torque, while the 130 mm square flange and robust 22 mm keyed shaft resist extreme torsional strains.

9.55 Nm Rated Torque3 kW Rated Output130 mm Square Flange22 mm Keyed Shaft

3. Precision CNC Machine Positioning

Provides rotational drive to the primary X and Y ball screws of precision CNC routing or metal-cutting centers, facilitating smooth, continuous motion at fluctuating feed rates.

Problem Solved

CNC machinery demands micro-level accuracy to prevent machining errors. The 23-bit absolute encoder feeds back millions of counts per revolution, preventing position drift. The robust 400 V three-phase power and 3000 RPM operation maximize rapid traverse speeds, drastically cutting non-cutting cycle times.

23-Bit Resolution3000 r/min Rated Speed400 V Three PhaseClosed-Loop Position Feedback
