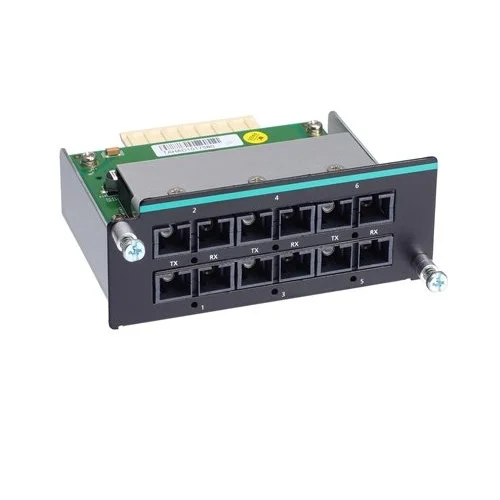

Name: Moxa IM-6700A-6SSC Fast Ethernet Single-Mode SC Module - INOSAKI
SKU: MOXA-IM-6700A-6SSC
Price: 1090.00 USD
Availability: InStock

Technical Overview

6x 100BaseFX single-mode SC ports with 40 km reach at 1310 nm. Max 7.57W power consumption. Modular industrial Ethernet. Weighs 0.390 kg.

Key Features

Modular design for flexible media combinations in IKS-6700A Series switches
6x 100BaseFX single-mode SC fiber optic ports
Supports network extension up to 40 km distance
Operates at 1310 nm wavelength for single-mode fiber
Maximum power consumption of 7.57 W
High Mean Time Between Failures (MTBF) of 3,153,055 hours for reliability
Backed by a 5-year warranty

Technical Specification Matrix

Parameter	Value
Ethernet Ports	6x 100BaseFX (single-mode SC connector)
Fiber Cable Type	G.652 Single-Mode
Typical Distance	40 km
Wavelength TX Range	1280 to 1340 nm
Wavelength RX Range	1100 to 1600 nm
Optical Power TX Range	0 to -5 dBm
Optical Power RX Range	-3 to -34 dBm
Optical Power Link Budget	29 dB
Optical Power Dispersion Penalty	1 dB
Power Consumption	7.57 W (max.)
MTBF	3,153,055 hrs
Standards	Telcordia (Bellcore), GB
Warranty Period	5 years
Physical Weight (kg)	0.39
Dimensions L x W x H (cm)	10.56 x 7.1 x 8.97

Industrial Applications

1. Long-Distance SCADA Network Extension

Industrial SCADA systems often require reliable data transmission over significant distances, connecting remote RTUs or field devices to central control rooms. The IM-6700A-6SSC, with its 40 km single-mode fiber capability, is ideal for extending Ethernet networks in expansive industrial sites, utility grids, or pipeline monitoring systems.

Problem Solved

Overcoming distance limitations of traditional copper Ethernet for critical data backhaul in geographically dispersed industrial operations, ensuring signal integrity and reducing electromagnetic interference.

SCADARTUlong-haul communicationsingle-mode fiber40 kmelectromagnetic immunity

2. Industrial Campus Backbone Connectivity

Large industrial campuses, such as manufacturing plants with multiple buildings or port facilities, need a robust and high-bandwidth network backbone. This module provides 6 single-mode fiber ports, allowing for secure and high-speed inter-building communication, linking different operational units to a central network hub.

Problem Solved

Establishing a reliable and fast network backbone across a sprawling industrial site, where multiple buildings need to be interconnected without signal degradation or security concerns, while leveraging the modularity of the IKS-6700A series.

Campus networkindustrial backboneinter-building connectivityfiber opticmodular switchdata integrity

3. Rail/Roadside Communication Networks

Communication networks along railway lines or highways often span long distances and are exposed to harsh environments. The IM-6700A-6SSC's 40 km single-mode fiber range makes it suitable for deploying communication nodes for traffic management, surveillance, or signaling systems, connecting them back to a central control center over long stretches.

Problem Solved

Providing resilient and long-range data transmission for distributed infrastructure along transportation corridors, mitigating the challenges of extended distances and ensuring continuous operational monitoring and control.

Transportation infrastructurewayside communicationlong-distance monitoringsingle-mode fibernetwork extension
