USD 2,579.10

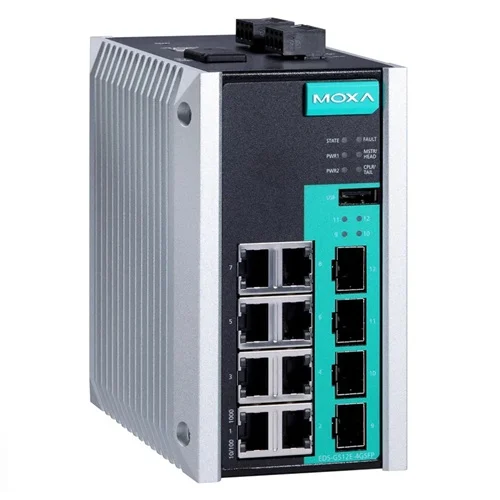

Industrial Layer 2 managed full-Gigabit switch featuring 8x 10/100/1000BaseT(X) ports, 4x SFP slots, IP30 metal housing, and -40 to 75°C operating range.
The Moxa EDS-G512E-4GSFP-T is a highly reliable industrial Layer 2 managed Ethernet switch engineered for bandwidth-intensive applications. It is equipped with 12 Gigabit ports, comprising eight 10/100/1000BaseT(X) RJ45 ports and four 100/1000BaseSFP fiber slots, making it ideal for scalable backbone construction or upgrading networks to full Gigabit speeds. Built to withstand harsh industrial environments, this extended-temperature model operates flawlessly from -40 to 75°C. To ensure maximum network uptime, the switch utilizes rapid redundancy protocols including Turbo Ring and Turbo Chain (recovery time < 50 ms), alongside standard RSTP/STP and MSTP. It incorporates advanced cybersecurity features compliant with the IEC 62443 standard, ensuring robust protection for critical infrastructures. Designed for intelligent transportation systems, process automation, and power networks, the EDS-G512E-4GSFP-T supports PROFINET, EtherNet/IP, and Modbus TCP for seamless device management. An IP30-rated rugged metal housing and redundant power inputs guarantee continuous operation in demanding deployments.
| Parameter | Value |
|---|---|
| Total Ports | 12 |
| RJ45 Ports | 8x 10/100/1000BaseT(X) |
| Fiber Ports | 4x 100/1000BaseSFP Slots |
| Operating Voltage | 12/24/48/-48 VDC (Redundant Inputs) |
| Max Power Consumption | 14.36 W |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| IP Rating | IP30 |
| Housing Material | Metal |
| Redundancy Protocols | Turbo Ring, Turbo Chain, RSTP/STP, MSTP |
| Industrial Protocols | EtherNet/IP, PROFINET, Modbus TCP |
| Dimensions (W x H x D) | 79.2 x 135 x 137 mm |
| Physical Weight (kg) | 1.44 |
| Dimensions L x W x H (cm) | 13.7 x 7.92 x 13.5 |
Provides highly reliable data transmission for distributed wind turbines using high-speed Gigabit fiber optic links.
Eliminates network bottlenecks and ensures high-speed, long-distance communication in extreme outdoor temperature fluctuations.
Facilitates high-bandwidth video surveillance and traffic control monitoring in roadside control cabinets.
Provides the gigabit bandwidth required for multiple high-definition traffic cameras and ensures system reliability through rapid network redundancy.
Delivers secure, high-speed Layer 2 Ethernet switching for power automation and control devices in electrical substations.
Withstands severe electromagnetic interference (EMI) while delivering precise time synchronization and critical control data security.
