USD 2,579.10

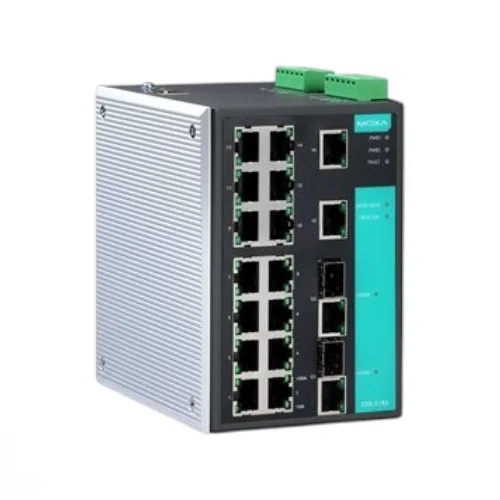

18-port industrial Layer 2 managed switch with 16 Fast Ethernet, 2 combo Gigabit ports, dual 12-45 VDC inputs, IP30 metal housing, and sub-20ms redundancy.
18-port industrial Layer 2 managed switch with 16 Fast Ethernet, 2 combo Gigabit ports, dual 12-45 VDC inputs, IP30 metal housing, and sub-20ms redundancy.
| Parameter | Value |
|---|---|
| Port Configuration | 16 x 10/100BaseT(X), 2 x Combo 10/100/1000BaseT(X) or 1000BaseSFP |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Input Voltage | 24 VDC (12 to 45 VDC operating), Redundant Dual Inputs |
| Input Current | 0.44 A @ 24 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| IP Rating | IP30 |
| Housing | Metal |
| Dimensions (W x H x D) | 94 x 135 x 142.7 mm |
| Physical Weight (kg) | 1.63 |
| Dimensions L x W x H (cm) | 14.27 x 9.4 x 13.5 |
Deployed as a highly reliable central switch for PLCs, HMIs, and robotic controllers on an active factory floor.
Ensures deterministic network performance and prevents costly downtime via sub-20ms Turbo Ring redundancy in environments prone to high electromagnetic interference.
Installed in roadside cabinets to reliably aggregate data from traffic cameras, inductive loops, and signaling controllers.
The wide -40 to 75°C operating temperature and rigid IP30 housing guarantee continuous, uninterrupted operation in outdoor enclosures exposed to extreme climate fluctuations.
Facilitates vital data collection from widespread solar inverters and wind turbine generators back to a central SCADA control facility.
Provides secure, noise-immune long-distance communication via SFP combo ports, while the wide 12-45 VDC dual inputs protect against voltage sags and surges common in power generation.
