USD 2,113.43

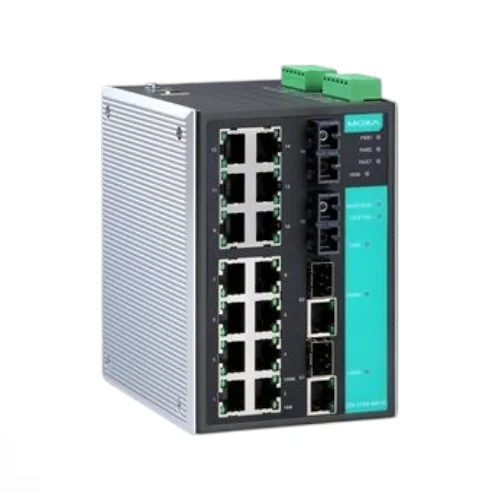

18-port industrial Layer 2 managed Ethernet switch featuring 14 copper ports, 2 multi-mode SC fiber ports, 2 Gigabit combo ports, and <20ms redundancy.
18-port industrial Layer 2 managed Ethernet switch featuring 14 copper ports, 2 multi-mode SC fiber ports, 2 Gigabit combo ports, and <20ms redundancy.
| Parameter | Value |
|---|---|
| Ethernet Ports | 14 x 10/100BaseT(X) RJ45, 2 x 100BaseFX Multi-Mode SC, 2 x Gigabit Combo (10/100/1000BaseT(X) or 1000BaseSFP) |
| Input Voltage | 24 VDC (12 to 45 VDC operating) redundant dual inputs |
| Input Current | 0.52 A @ 24 VDC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| IP Rating | IP30 |
| Housing Material | Metal |
| Redundancy Protocols | Turbo Ring, Turbo Chain, STP, MSTP, RSTP |
| Management Protocols | SNMPv1/v2c/v3, EtherNet/IP, Modbus TCP, PROFINET |
| Physical Weight (kg) | 1.63 |
| Dimensions L x W x H (cm) | 14.27 x 9.4 x 13.5 |
Integrates high-density PLC nodes with reliable layer 2 management and fast redundancy protocols.
Prevents downtime in continuous manufacturing by delivering sub-20ms recovery times via Turbo Ring and connecting legacy PLCs.
Connects decentralized control cabinets over longer distances utilizing the built-in multi-mode fiber ports.
Overcomes the 100-meter copper distance limitation in expansive plants while avoiding EMI/RFI issues using multi-mode fiber optic transmission.
Provides reliable data aggregation for traffic monitoring systems and tolling stations with high bandwidth requirements.
Solves network bottlenecks by employing Gigabit combo uplink ports, ensuring smooth video surveillance streaming alongside signaling data.
