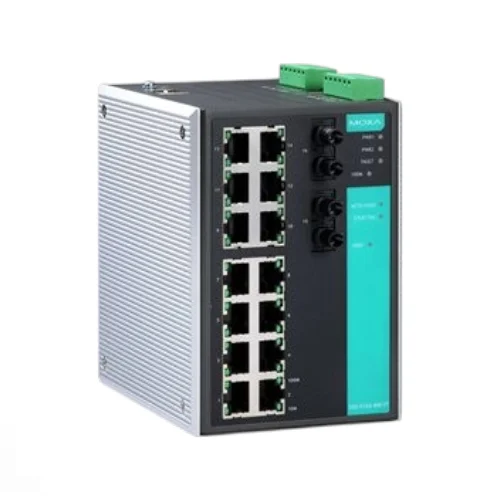

Name: Moxa EDS-516A-MM-ST-T Layer 2 Managed Switch - INOSAKI
SKU: MOXA-EDS-516A-MM-ST-T
Price: 3192.04 USD
Availability: InStock

Technical Overview

Managed Layer 2 Ethernet switch with 14x 10/100BaseT(X) RJ45, 2x 100BaseFX multi-mode ST fiber ports. IP30 metal housing, -40 to 75°C operating temp range.

Key Features

14x 10/100BaseT(X) RJ45 ports and 2x 100BaseFX multi-mode ports with ST connectors
Wide operating temperature range of -40 to 75°C (-40 to 167°F)
Turbo Ring and Turbo Chain network redundancy with recovery time < 20 ms
Supports EtherNet/IP, Modbus TCP, and PROFINET industrial protocols
Advanced security features including TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH
Robust IP30 metal housing with DIN-rail mounting capability
IGMP snooping and GMRP for filtering multicast traffic

Technical Specification Matrix

Parameter	Value
Total Ports	16
RJ45 Ports	14 x 10/100BaseT(X)
Fiber Ports	2 x 100BaseFX (Multi-Mode, ST Connector)
Operating Voltage	12 to 45 VDC
Input Current	0.44 A @ 24 VDC
Operating Temperature	-40°C to 75°C
IP Rating	IP30
Housing Material	Metal
MAC Table Size	8 K
Max VLANs	64
Packet Buffer Size	2 Mbits
Physical Weight (kg)	1.59
Dimensions L x W x H (cm)	14.27 x 9.4 x 13.5

Industrial Applications

1. Oil and Gas Pipeline Communication Networks

Ensures reliable data transmission across extensive pipeline networks in extreme environments. The wide -40 to 75°C operating range withstands desert and arctic temperatures, while Turbo Ring redundancy guarantees sub-20ms recovery.

Problem Solved

Prevents data loss and network downtime in mission-critical pipeline monitoring caused by environmental temperature extremes and network link failures.

Turbo Ring-40 to 75°C Wide TempRedundant VDC InputMulti-mode Fiber

2. Intelligent Transportation Systems (ITS)

Aggregates traffic data from IP cameras and road sensors to the central control center. The integrated 100BaseFX multi-mode fiber ports allow interference-free, long-distance data uplinks across miles of highway infrastructure.

Problem Solved

Eliminates electromagnetic interference (EMI) and distance limitations of standard copper Ethernet cables in roadside automation cabinets.

100BaseFX ST FiberIP30 Metal HousingDIN-rail MountTraffic Data Aggregation

3. Factory Automation and SCADA Integration

Connects multiple PLCs, HMIs, and motor drives into a robust, centralized control network using integrated EtherNet/IP and Modbus/TCP protocols. IGMP snooping efficiently manages multicast traffic from automation nodes.

Problem Solved

Overcomes network congestion in high-node-count automation floors, ensuring deterministic communication between critical automation cells without dropped packets.

EtherNet/IPModbus/TCPIGMP SnoopingVLAN Management
