USD 1,598.76

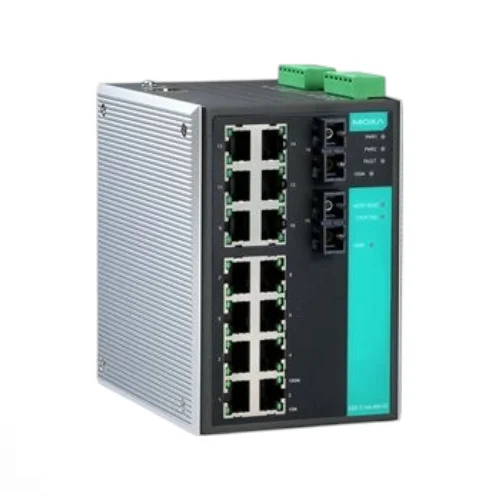

16-port industrial managed Layer 2 switch (14x RJ45, 2x MM SC fiber). Features sub-20ms recovery Turbo Ring, IP30 metal housing, and redundant 24VDC inputs.
16-port industrial managed Layer 2 switch (14x RJ45, 2x MM SC fiber). Features sub-20ms recovery Turbo Ring, IP30 metal housing, and redundant 24VDC inputs.
| Parameter | Value |
|---|---|
| Total Ports | 16 |
| RJ45 Ports | 14x 10/100BaseT(X) |
| Fiber Ports | 2x 100BaseFX (Multi-Mode, SC connector) |
| Operating Voltage | 12 to 45 VDC |
| Input Current | 0.44 A @ 24 VDC |
| IP Rating | IP30 |
| Housing Material | Metal |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| MAC Table Size | 8 K |
| Packet Buffer Size | 2 Mbits |
| Physical Weight (kg) | 1.59 |
| Dimensions L x W x H (cm) | 14.27 x 9.4 x 13.5 |
Utilizing the switch's Turbo Ring topology to establish an ultra-reliable communication network for programmable logic controllers and robotic work cells.
Standard switches fail to recover quickly from link drops, causing manufacturing downtime; this unit provides a sub-20ms recovery time to ensure uninterrupted operations.
Deploying the 16-port capacity to securely aggregate widespread sensor data and RTU traffic back to a centralized SCADA system.
Ensures deterministic network performance and shields against broadcast storms or unauthorized access via VLANs, IGMP Snooping, and IEEE 802.1X.
Connecting diverse electrical substations or heavy machinery floors via the dual 100BaseFX multi-mode SC fiber ports.
Copper cabling suffers from severe electromagnetic interference over long runs; multi-mode fiber ports provide noise-immune data transfer across the facility.
