USD 2,052.24

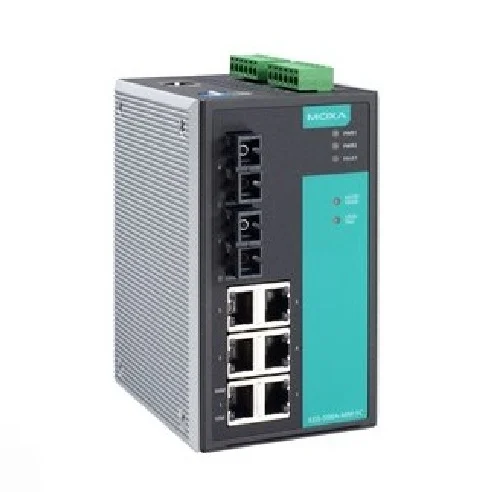

Industrial 8-port Layer 2 managed switch featuring 6 RJ45 ports, 2 single-mode SC fiber ports, and a wide -40 to 75°C operating temperature range.
Industrial 8-port Layer 2 managed switch featuring 6 RJ45 ports, 2 single-mode SC fiber ports, and a wide -40 to 75°C operating temperature range.
| Parameter | Value |
|---|---|
| Ethernet Ports | 6 x 10/100BaseT(X) RJ45 |
| Fiber Ports | 2 x 100BaseFX Single-mode (SC connector) |
| Input Voltage | 12/24/48 VDC, Redundant Dual Inputs |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Housing Material | Metal, IP30 Rating |
| Physical Weight (kg) | 1.04 |
| Dimensions L x W x H (cm) | 10.5 x 8.02 x 13.5 |
Deployed in remote pipeline cabinets to transmit critical pressure, flow, and temperature sensor data over long distances via single-mode fiber links.
Maintains communication integrity across vast distances while withstanding severe outdoor temperature fluctuations and preventing data loss during network events.
Acts as a primary network backbone for robotic assembly lines requiring real-time control, Modbus/TCP, and EtherNet/IP integration.
Minimizes costly production downtime by utilizing Turbo Ring technology to recover severed communication links in under 20 milliseconds.
Installed in roadside control enclosures to network IP surveillance cameras, tolling systems, and traffic controllers back to a central management center.
Overcomes extreme environmental challenges with its rugged IP30 metal housing and -40 to 75°C thermal tolerance, ensuring reliable high-bandwidth video streaming.
