Original price was: $ 1,265.69.$ 987.62Current price is: $ 987.62.
A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.
| Inch-Metric: |
Metric
|
| Range: |
125 – 150 mm
|
| Graduation: |
0,005 mm
|
| Maximum Permissible Error J MPE: |
±5 µm
|
| Scale: |
Thimble and sleeve satin chrome finish, |
| Measuring spindle: |
Spindle pitch 0,5 mm
|
| Measuring face: |
Titanium coated hardened steel
taper: tungsten carbide |
| Measuring method: |
3-point
|
| Delivered: |
Including box, key, certificate of inspection |
| Digital/Analog: |
Analog
|
| Mass: |
1120 g
|
| a: |
12.4 mm
|
| b: |
21 mm
|
| c: |
13.8 mm
|

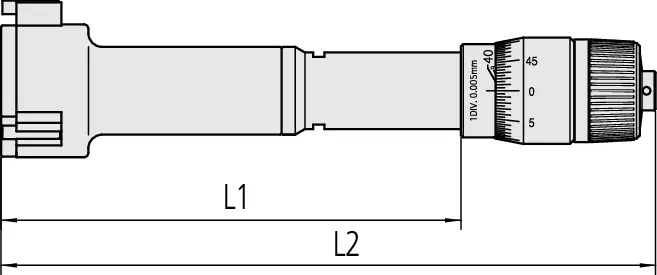

| L1: |
161 mm
|
| L2: |
227 – 252 mm
|
All products of product family Series 368:
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 50-63mm, 0,005mm | 62-75mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-170 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-171 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 75-88mm, 0,005mm | 87-100mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-172 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-173 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 100-125mm, 0,005mm | 125-150mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-174 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-175 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 150-175mm, 0,005mm | 6-8mm, 0,001mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-176 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-161 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 8-10mm, 0,001mm | 10-12mm, 0,001mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-162 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-163 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 12-16mm, 0,005mm | 16-20mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-164 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-165 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 20-25mm, 0,005mm | 25-30mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-166 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-167 | ||
| More Info | More Info | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 30-40mm, 0,005mm | 40-50mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-168 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-169 | ||
| More Info | More Info | ||
 |
2-Point Internal Micrometer Holtest |  |
2-Point Internal Micrometer Holtest |
| 2-2,5mm, 0,001mm | 2,5-3mm, 0,001mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-001 | Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-002 | ||
| For more : Contact us | For more : Contact us | ||
 |
2-Point Internal Micrometer Holtest |  |
2-Point Internal Micrometer Holtest |
| 3-4mm, 0,001mm | 4-5mm, 0,001mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-003 | Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-004 | ||
| For more : Contact us | For more : Contact us | ||
 |
2-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 5-6mm, 0,001mm | 175-200mm, 0,005mm | ||
| Mitutoyo 2-Point Internal Micrometer Holtest Part Number: 368-005 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-177 | ||
| For more : Contact us | For more : Contact us | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 200-225mm, 0,005mm | 225-250mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-178 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-179 | ||
| For more : Contact us | For more : Contact us | ||
 |
3-Point Internal Micrometer Holtest |  |
3-Point Internal Micrometer Holtest |
| 250-275mm, 0,005mm | 275-300mm, 0,005mm | ||
| Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-180 | Mitutoyo 3-Point Internal Micrometer Holtest Part Number: 368-181 | ||
| For more : Contact us | For more : Contact us |
Optional accessories:
 |
Holtest, Borematic Extension 100mm |
| for 6-12mm Measuring Range | |
| Mitutoyo Part Number : 952322 | |
| For more : Contact us | |
 |
Holtest, Borematic Extension 150mm |
| for 12-20mm Measuring Range | |
| Mitutoyo Part Number : 952621 | |
| For more : Contact us | |
 |
Holtest, Borematic Extension 150mm |
| for 20-50mm Measuring Range | |
| Mitutoyo Part Number : 952622 | |
| For more : Contact us | |
 |
Holtest, Borematic Extension 150mm |
| for 50-300mm Measuring Range | |
| Mitutoyo Part Number : 952623 | |
| For more : Contact us |
| Weight | 1.120 kg |
|---|
