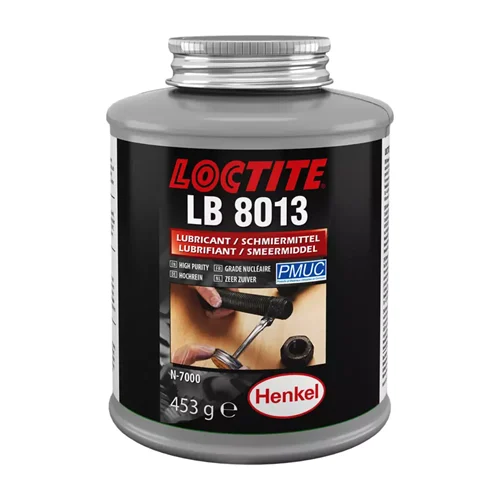

Name: Loctite LB 8013 High Purity Anti-Seize - INOSAKI
SKU: Loctite-LB8013-1LB
Price: 73.88 USD
Availability: InStock

Technical Overview

High-purity metal-free anti-seize paste with graphite and calcium oxide. Resists up to 1315°C. Prevents galling, thread seizure, and stress corrosion.

Key Features

Metal-free composition preventing environmental dispersal of heavy metals
Extreme high-temperature resistance up to 1,315°C (2,400°F)
PMUC approved for Class 1, 2, and 3 nuclear power plant hardware
High-purity formula containing only trace levels of halogens, sulfur, and heavy metals
Prevents high friction, galling, and seizing during assembly
Promotes uniform and predictable clamping (Torque coefficient K-value of 0.16)
Prevents stress corrosion cracking during operation and thread destruction upon disassembly

Technical Specification Matrix

Parameter	Value
Technology	Anti-Seize
Chemical Type	Calcium Oxide / Graphite
Appearance	Dark gray paste
Components	One component - requires no mixing
Cure	Non-curing
Maximum Temperature	+1315°C (+2400°F)
Minimum Temperature	-29°C (-20°F)
Specific Gravity @ 25 °C	1.12 to 1.27
Penetration unworked (ISO 2137)	320 to 380 (1/10 mm)
Torque Coefficient (k) - Steel Bolts	0.16
Torque Coefficient (k) - Stainless Steel Bolts	0.18
Chloride Content	<= 50 ppm
Sulfur Content	<= 100 ppm
Fluorine Content	<= 200 ppm
Container Size	1 lb (453.6 g)
Container Type	Brush-Top Can
Physical Weight (kg)	0.55
Dimensions L x W x H (cm)	8.38 x 8.38 x 11.18

Industrial Applications

1. Fastener Protection in Nuclear Reactor Coolant Systems

Nuclear electric power generating plants demand high-purity materials with trace halogen and sulfur levels to prevent stress corrosion cracking in high-temperature environments. LB 8013 is PMUC-approved and contains <=50 ppm chloride and <=100 ppm sulfur, making it ideal for treating bolts, studs, and valves in steam generators and reactor coolant loops.

Problem Solved

Prevents catastrophic stress corrosion cracking (SCC) of critical stainless steel fasteners subjected to operational temperatures up to 1315°C, while enabling non-destructive disassembly for inspections.

PMUC approvednuclear electric powerstress corrosion crackinglow chloridestainless steel fasteners

2. High-Temperature Flange and Pipe Fitting Lubrication

Refineries and chemical processing plants utilize high-temperature piping systems that transport corrosive fluids. Standard metallic anti-seize compounds can cause galvanic corrosion on stainless steel flanges and fittings. LB 8013 provides a metal-free, high-purity barrier that withstands chemicals and up to 1315°C heat without decomposing.

Problem Solved

Eliminates galling and seizing of threaded joints, fittings, and slip fits exposed to high temperatures and aggressive chemical atmospheres, facilitating uniform clamping pressure (K-factor of 0.18 on stainless steel) and easy maintenance disassembly.

metal-freechemical resistanceflange lubricationtorque coefficientgalling prevention

3. Steam Valve Stem and Press Fit Protection in Paper Manufacturing

Paper mills run continuous steam lines and high-heat drying sections where control valves operate under extreme heat and heavy loads. LB 8013's non-curing, calcium oxide/graphite-based formula offers superior lubrication and load-carrying capacity in steam valve stems, press fits, and slip fits.

Problem Solved

Prevents critical valve stems and press-fitted components from seizing or wearing out prematurely under high-temperature steam exposure, ensuring smooth actuation and preventing costly production line shutdowns.

non-curing pastecalcium oxidegraphitevalve actuatorhigh temperature resistance
