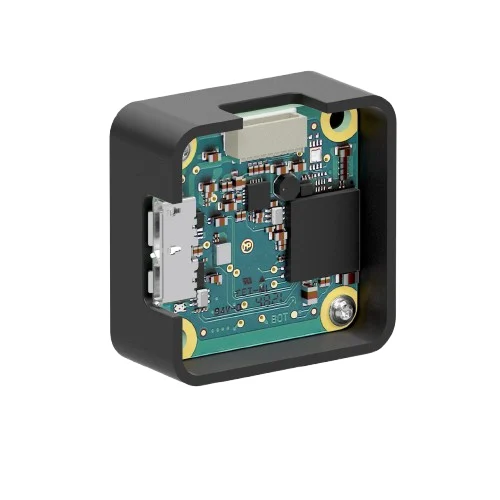

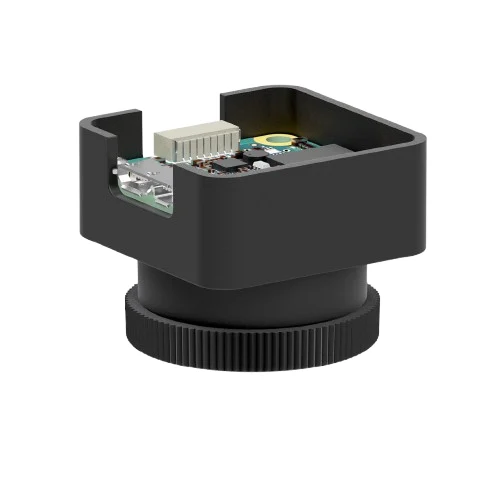

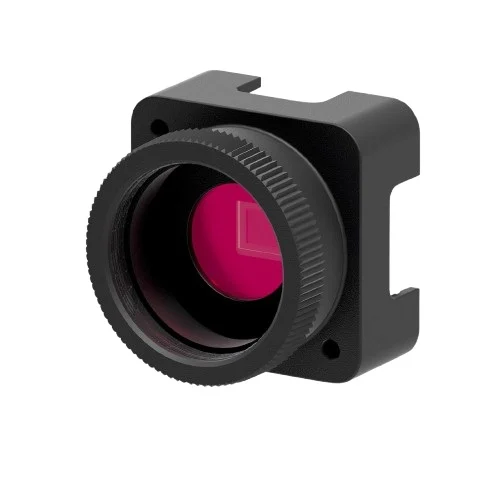

IDS U3-33F4XLS-M-NO Rev.1.2 5MP CMOS Mono Global Shutter Camera

Technical Overview

Compact 5MP USB 3.0 camera module featuring a Sony IMX568-AAMJ-C CMOS mono global shutter sensor, 2472x2062 resolution, 12-bit ADC, and 49 fps.

Key Features

5 MP CMOS Mono Global Shutter sensor
2472 x 2062 pixel (5.10 Mpix) resolution
12-bit ADC and 12-bit color depth
Maximum 49 fps frame rate (freerun and trigger)
USB 3.0 micro-B interface for power and data
8-pin Wuerth connector for I/O
CS-/C-Mount lens compatibility
Ultra-compact dimensions: 32.5 mm x 32.5 mm x 14.0 mm
Supports freerun, software, and hardware triggering
Integrated image pre-processing features including binning and Region of Interest (ROI)

Technical Specification Matrix

Parameter	Value
Sensor Type	CMOS Mono
Shutter	Global Shutter
Sensor Characteristic	Linear
Pixel Class	5 MP
Resolution	5.10 Mpix (2472 x 2062 Pixel)
Aspect Ratio	5:4
ADC	12 bit
Color Depth (camera)	12 bit
Optical Sensor Class	1/1.8"
Optical Size	6.708 mm x 5.612 mm
Optical Sensor Diagonal	8.75 mm / 1/1.8"
Pixel Size	2.74 µm
CRA (Chief Ray Angle)	0°
Sensor Manufacturer	Sony
Sensor Model	IMX568-AAMJ-C
Gain (master/RGB)	13.2x/-
Frame Rate Freerun Mode	49 fps
Frame Rate Trigger (continuous)	49 fps
Frame Rate Trigger (maximum)	49 fps
Exposure Time (minimum - maximum)	0.009 ms - 2000 ms
Power Consumption	0.5 W - 1.2 W
Allowed Device Temperature (operation)	0 °C - 75 °C / 32 °F - 167 °F
Allowed Device Temperature (storage)	-20 °C - 80 °C / -4 °F - 176 °F
Humidity (relative, non-condensing)	20% - 80%
Interface Connector	USB 3.0 micro-B
I/O Connector	8-pin Wuerth connector
Power Supply	USB cable (5 V, max. 400 mA)
Lens Mount	CS-/C-Mount
Dimensions (H/W/L)	32.5 mm x 32.5 mm x 14.0 mm
Mass	17 g
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	1.4 x 3.25 x 3.25

Industrial Applications

1. High-Speed Automated Optical Inspection (AOI)

The IDS U3-33F4XLS-M-NO, with its 5 MP global shutter CMOS sensor and 49 fps frame rate, is ideal for automated optical inspection systems requiring rapid image capture without motion blur. Its high resolution (2472 x 2062 pixels) allows for detailed defect detection on fast-moving production lines.

Problem Solved

Ensures high-throughput quality control by accurately inspecting intricate details of products on conveyor belts, preventing motion artifacts in images and improving detection rates for small defects.

Automated Optical InspectionGlobal ShutterHigh Frame RateDefect DetectionQuality ControlMachine Vision

2. Precision Measurement and Gauging

Utilizing its 5.10 Mpix resolution and 2.74 µm pixel size, this camera provides the granular detail necessary for precision measurement and gauging applications. The 12-bit ADC ensures a wide dynamic range for accurate intensity differentiation in critical metrology tasks.

Problem Solved

Enables highly accurate dimensional measurements of small components, overcoming limitations of lower resolution cameras by providing precise edge detection and sub-pixel accuracy for quality assurance.

MetrologyPrecision MeasurementDimensional GaugingHigh ResolutionImage AnalysisQuality Assurance

3. Robotics and Pick-and-Place Systems

The compact size (32.5 x 32.5 x 14.0 mm) and USB 3.0 interface make this camera suitable for integration into robotic arms or compact pick-and-place machines where space is limited. Its global shutter and hardware trigger capabilities ensure reliable object recognition and localization for robotic guidance.

Problem Solved

Provides reliable vision feedback for robotic systems in constrained environments, enabling accurate object identification and manipulation for tasks like assembly, sorting, and part presentation.

Robotic VisionPick-and-PlaceMachine GuidanceCompact Form FactorGlobal ShutterObject Recognition
