USD 147.51

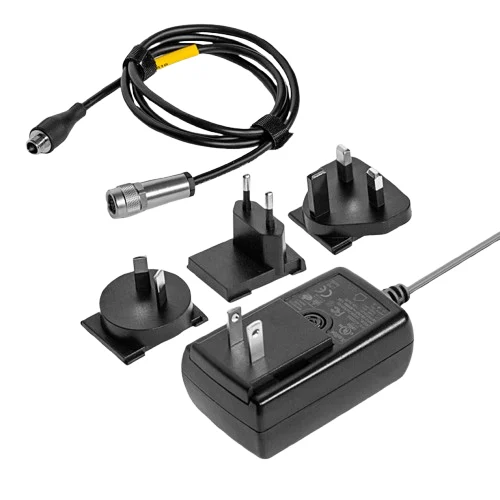

Universal AC/DC power supply set delivering 24V DC up to 1.0A for GigE FA and GigE RE cameras. Includes interchangeable plugs and 1.5m total cable length.
Universal AC/DC power supply set delivering 24V DC up to 1.0A for GigE FA and GigE RE cameras. Includes interchangeable plugs and 1.5m total cable length.
| Parameter | Value |
|---|---|
| Input Voltage | 100-240V AC ~ 50/60 Hz |
| Output Voltage | 24V DC (±5%) |
| Max Output Current | 1.0 A |
| Mains Plug Options | UL, SAA, VDE, BS Plug |
| Output Connector | 8-pin Binder jack, straight, screwable, female |
| Cable K1 Specifications | 0.6 m, 20AWG, AWM1185, black round cable |
| Cable K2 Specifications | 0.9 m, UL-LiYY, 2xAWG24, black |
| Total Cable Length | 1.5 m |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 10-90% RH (Storage: 5-95% RH) |
| Wiring Pin 2 | 24V DC (Brown) |
| Wiring Pin 4 | Ground (Black) |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 8.1 x 4.9 x 3.4 |
Powers IDS GigE FA industrial cameras in automated factory environments. The screwable Binder jack ensures vibration-resistant power delivery.
Prevents camera power dropouts caused by high mechanical vibrations on manufacturing lines.
Machinery manufacturers can ship their system globally without changing power components, utilizing the interchangeable UL, SAA, VDE, and BS mains plugs.
Eliminates the need to source and stock region-specific power supplies for international export markets.
Powers GigE RE (ruggedized enclosure) cameras located in control systems where stable, isolated power and certified electromagnetic compatibility are required.
Ensures electromagnetic interference (EMI) is kept to a minimum in precision process monitoring loops.
