1. Automated Pick-and-Place of Non-Porous Components

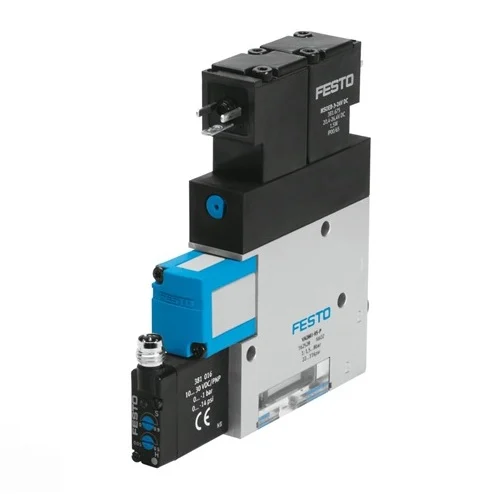

In high-speed robotic manipulation of electronic or automotive parts, securing the component quickly and releasing it without delay is critical. This device utilizes its 2mm Laval nozzle to generate high vacuum rapidly, securely gripping the parts [1.6].
Problem SolvedPrevents slow cycle times and sticking of parts upon release by utilizing the integrated electric ejector pulse valve, which forces the part off the suction cup instantly.
Venturi principleLaval nozzleHigh vacuumEjector pulse valvePick-and-place
2. End-of-Arm Tooling (EOAT) Vacuum Monitoring
Mounted directly on robotic arms, the generator creates and monitors the necessary vacuum for safe handling of heavy or critical workpieces. The 22mm grid dimension ensures it fits into compact EOAT configurations without adding excessive bulk.
Problem SolvedEliminates the risk of dropping workpieces due to pressure drops by using the integrated piezoresistive PNP vacuum switch, which sends a real-time threshold confirmation signal to the PLC before robot movement.
EOATPiezoresistive vacuum switchPNP outputThreshold value comparatorIP65
3. Dusty Environment Material Handling
Used in packaging or woodworking machinery where particulates are common, the vacuum generator continuously operates at 2 to 8 bar to grip cardboard, wood, or plastics.
Problem SolvedPrevents internal nozzle clogging and performance degradation in dirty environments through its integrated 40 µm filter, while the transparent inspection window allows maintenance teams to schedule cleanings.
40 µm filtrationInspection windowClosed silencerG1/4 pneumatic connectionHigh vacuum ejector
