USD 125.74
Relative pressure sensor, 0–10 bar range, dual PNP/NPN outputs, 15–30 V DC, illuminated LCD, G1/8 pneumatic connection.

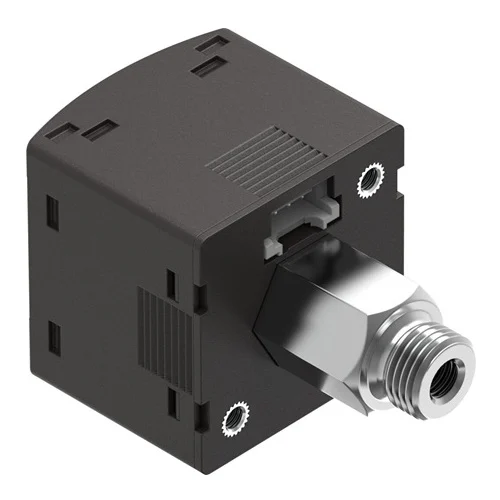

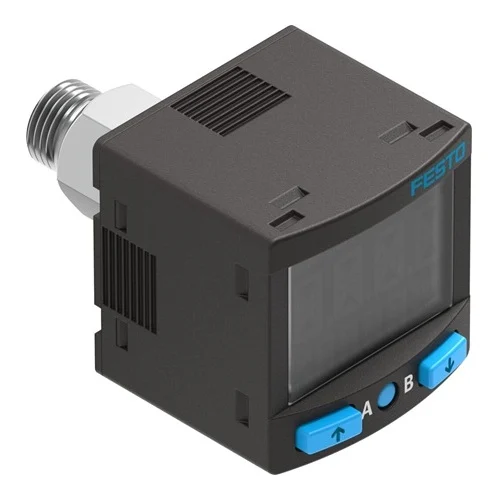

Festo SPAN-P10R-G18M-PN-PN-L1 is a piezoresistive relative pressure sensor for compressed air and inert gases. It supports a 0 to 10 bar measuring range, 15 bar max overload, 15 to 30 V DC supply, dual switch outputs configurable as PNP or NPN, and a front-panel/wall/threaded mounting concept. The unit includes an illuminated LCD display, G1/8 pneumatic connection with M5 female thread, and a 46 g housing designed for industrial pneumatic monitoring and control.
| Parameter | Value |
|---|---|
| Measured variable | Relative pressure |
| Measurement method | Piezoresistive pressure sensor |
| Pressure measuring range | 0 MPa to 1 MPa (0 bar to 10 bar / 0 psi to 145 psi) |
| Max. overload pressure | 15 bar |
| Overload pressure | 1.5 MPa (15 bar / 217.5 psi) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Operating medium note | Lubricated operation possible |
| Media temperature | 0 °C to 50 °C |
| Ambient temperature | 0 °C to 50 °C |
| Accuracy | ±1.5 %FS |
| Repetition accuracy | ±0.3 %FS |
| Temperature coefficient | 0.05 %FS/K |
| Switching output | 2 x PNP or 2 x NPN, switchable |
| Switching function | Window comparator, threshold value comparator, auto difference monitoring |
| Switching element function | NC or NO, switchable |
| Max. output current | 100 mA |
| Short-circuit current rating | Yes |
| Operational voltage range DC | 15 V to 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1 | Plug |
| Electrical connection 1 connector system | Plug pattern L1J |
| Electrical connection 1 number of connections/cores | 4 |
| Type of mounting | Front panel mounting, with thread, via wall/surface bracket |
| Mounting position | Any |
| Pneumatic connection | Male thread G1/8, female thread M5 |
| Product weight | 46 g |
| Material housing | Reinforced PA |
| Material in contact with the medium | Fluoro rubber, high-alloy stainless steel |
| Display type | Illuminated LCD |
| Displayable units | MPa, bar |
Used on plant air headers to continuously monitor relative pressure and trigger alarms or control signals when pressure drifts outside the set window.
Prevents unstable pneumatic supply from degrading actuator performance or causing line shutdowns.
Mounted on a machine manifold to verify that supply pressure is present before enabling valves, grippers, or cylinders.
Stops unsafe or incomplete machine cycles caused by low supply pressure.
Applied in protected industrial gas circuits where inert gas pressure must remain within a defined operating band for process stability.
Maintains process consistency by detecting underpressure or overpressure in gas delivery lines.
