Flush M8 inductive sensor, PNP NO, 10–30 VDC, 1.5 mm sensing, IP68, 2000 Hz, M8x1 plug.

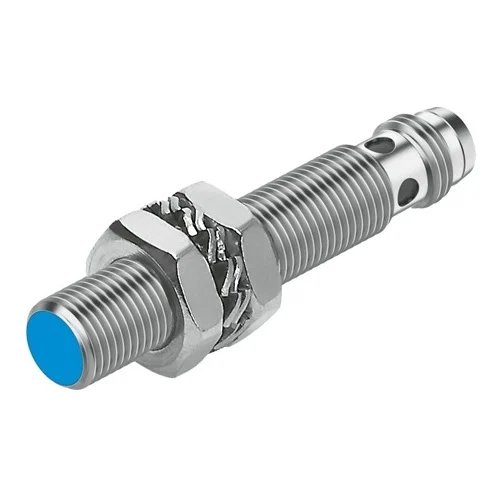

Compact round inductive proximity sensor for flush mounting in industrial automation. The official Festo datasheet identifies part number 553537 as SIEF-M8B-PS-S-L with PNP normally-open output, 10 V to 30 V DC supply range, 1.5 mm rated sensing distance, 2000 Hz switching frequency, 150 mA max output current, IP68 protection, and 3-pin M8x1 plug connection. It is designed for harsh environments with a -30 °C to 85 °C operating range and a 12 g product weight.
| Parameter | Value |
|---|---|
| Design | Round |
| Conforms to standard | EN 60947-5-2 |
| Approval | RCM trademark; c UL us listed (OL) |
| Rated operating distance | 1.5 mm |
| Ambient temperature | -30 °C...85 °C |
| Repetition accuracy | 0.08 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency DC | 2000 Hz |
| Max. output current | 150 mA |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 V...30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection | 3-pin M8x1 plug |
| Connector housing material | Brass, chrome-plated |
| Size | M8 |
| Mounting type | Flush |
| Product weight | 12 g |
| Housing material | PA; high-alloy stainless steel |
| Switching status indication | Yellow LED |
| Degree of protection | IP68 |
| Immunity to magnetic fields | Magnetic direct and alternating field |
Used on pneumatic cylinders or compact actuators where a flush-mounted sensor must confirm end position within a small installation envelope.
Provides reliable binary position confirmation in tight spaces with IP68 sealing and magnetic-field immunity.
Suitable for fast-moving indexing mechanisms that require rapid on/off feedback without mechanical contact wear.
2000 Hz switching frequency supports high-cycle detection with a 150 mA output stage for PLC input interfacing.
Fits washdown or contaminated environments where ingress protection and robust housing materials are required for dependable sensing.
IP68 protection, wide -30 °C to 85 °C range, and corrosion-resistant connector construction improve uptime in severe conditions.
