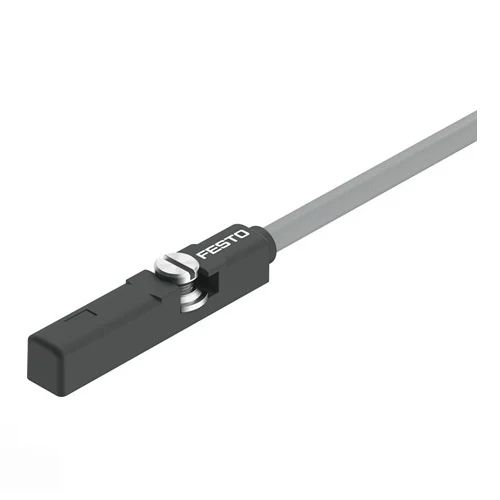

Name: Festo SDBT-MSB-1L-PU-K-2-LE Proximity Sensor - INOSAKI
SKU: Festo-8150171
Price: 35.57 USD
Availability: InStock

Technical Overview

The Festo SDBT-MSB-1L-PU-K-2-LE (Part Number: 8150171) is a magneto-resistive proximity switch designed for position measurement on pneumatic actuators with T-slots. It provides a PNP switching output with a 3-wire normally open (N/O) contact. Operating on a 10 to 30 VDC range, it delivers fast position sensing with a maximum switching frequency of 480 Hz and a repetition accuracy of 0.2 mm. Engineered for harsh environments, the housing is rated IP67 and IP68 according to IEC 60529. It features a 2-meter polyurethane (PUR) open-ended cable that is suitable for energy chains. Furthermore, the sensor is certified for LABS (PWIS) conformity and is suitable for lithium-ion battery manufacturing due to its reduced Cu/Zn/Ni content.

Key Features

Magneto-resistive measuring principle optimized for accurate T-slot position tracking [2.6].
PNP output configuration with a 3-wire, normally open (N/O) contact.
IP67 and IP68 protection classes per IEC 60529 for maximum resistance to dust and liquid immersion.
Suitable for Li-ion battery production with minimized copper, zinc, and nickel components.
High-speed switching capabilities up to 480 Hz with an on/off response time of ≤2.5 ms.
Wide ambient operating temperature range from -20 °C to 70 °C.
Includes a 2-meter, open-ended PUR cable engineered for use in energy chains.

Technical Specification Matrix

Parameter	Value
Operating Voltage	10 to 30 VDC [2.6]
Max Output Current	100 mA
Output Type	PNP, 3-wire, N/O contact
Measuring Principle	Magneto-resistive
Repetition Accuracy	0.2 mm
Switching Frequency	Max 480 Hz
Response Time	≤2.5 ms (On/Off)
IP Rating	IP67 / IP68 (IEC 60529)
Ambient Temperature	-20 °C to 70 °C
Cable	2 m, PUR sheath, open end
Weight	26.5 g

Industrial Applications

1. End-of-Stroke Sensing in Lithium-Ion Battery Assembly Systems [2.3]

In battery cell manufacturing lines, precision pneumatic positioning is critical. Contamination risks from metals must be minimized to avoid rendering battery cells unusable. This sensor mounts directly into actuator T-slots, providing highly accurate verification without exposing the battery materials to hazardous metals.

Problem Solved

Eliminates the risk of cell contamination during pneumatic positioning by using a sensor certified with reduced Cu/Zn/Ni content, while maintaining high-speed position feedback.

Lithium-ion battery production [2.3]Magneto-resistive sensingReduced Cu/Zn/NiT-slot mount

2. Automated Packaging Machinery in Washdown Environments

Packaging lines frequently require washdown protocols, exposing components to fluid ingress. Installed on T-slot pneumatic cylinders, this proximity switch accurately signals when mechanical flaps are fully actuated.

Problem Solved

Prevents sensor failure caused by fluid ingress during heavy washdown cycles, relying on its IP67 and IP68 ingress protection ratings and its durable PUR cable jacket.

IP68 Protection [2.3]PUR CablePackaging AutomationPneumatic Cylinders

3. High-Speed Robotic Gripper Verification

Robotic arms handling discrete components frequently utilize parallel pneumatic grippers, such as the Festo DHPL series. By integrating the SDBT-MSB sensor directly into the gripper's T-slot, the controller receives immediate feedback confirming a successful grasp.

Problem Solved

Ensures secure and verified grasping in high-throughput robotics. Its 0.2 mm repetition accuracy and extremely fast 2.5 ms response time enable tight cycle times without controller misreads.

Robotic Gripper [2.8]0.2 mm Repetition Accuracy2.5 ms Response TimePNP Output
